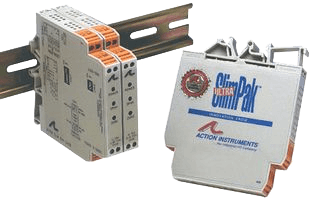

G468-0001 AC Input Field Configurable Isolator
Brand: EurothermThe G468 is a DIN rail mount, AC input signal conditioner with 1,800 Vdc isolation between input, output and power.
The field configurable input and output offers flexible, wide ranging capability for scaling, converting or buffering AC inputs ranging from 5 to 100 mA or 50 mV to 250 V.
For AC current measurements above 100 mA, use the model C006 shunt resistor (0.1 Ohm, 5 W).
This resistor must be wired in series with the current source, with the G468 configured to measure the voltage generated across the resistor.
The DC output of the G468 is proportional to the average of the fully-rectified AC input signal, and is calibrated for sine waves between 40 to 400 Hz.
Features- Field configurable input ranges: 50 mV to 250 Vac, 5 mA to 5 A AC
- Eliminates ground loops
- Field configurable outputs: 0 to 5 V, 0 to 10 V, 0 to 1 mA, 0 to 20 mA and 4-20 mA
- Ultra slim housing for high density installations
- Flexible power supply accepts 9-30 Vdc
- ASIC Technology for enhanced reliability
- RoHS Compliant
Specifications
Brand
Approvals & Certifications
- CE
- CSA
- EMC: Emmissions EN 50081-1, Immunity EN 50082-2, Directive 89/336/EEC
- LVD 73/23/EEC
- RoHS
- UL (C,US), 508 (File No. E99775)
- UR
