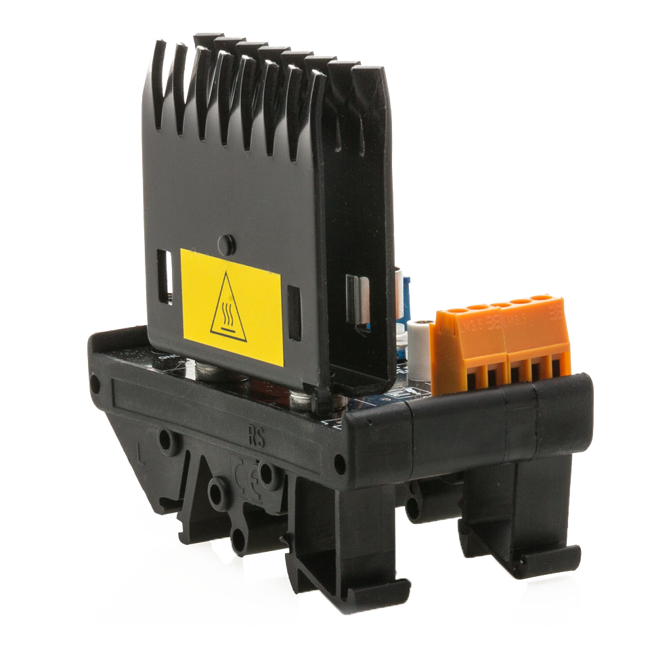

INSTALINK-SSR DC SSR & Current Limiter

Brand: Emphatec
Add Product to My Catalog

Features:
  •  DC solid state relay rated up to 20 A

  •  Includes overcurrent protection with user adjustable threshold

  •  Digital output when current threshold is exceeded

  •  Mounts on 32 mm and 35 mm DIN rails

    • Specifications

    Brand

    Approvals & Certifications

    • UL (C,US), E256770

    Current

    • 20 A, Max.
    • Alarm Current: 50 mA - Max.
    • Control Current: 2 mA - Max.
    • Current Trip Point Threshold: 0.5-20 A
    • Current: 15 A, Max.
    • Surge Current: 25 A, Max.

    Electrical Connectors

    • 16 to 14 AWG
    • 26 to 10 AWG
    • 26 to 12 AWG

    Indication

    • LED

    Mounting

    • 32 mm or 35 mm DIN Rail

    Operating Temperature

    • -20° to 70° C (-4° to 160° F)

    Operating Time

    • Switch Time < 120 milliseconds

    Supply Voltage

    • 20-28 Vac
    • Nominal: 24 Vdc

    Voltage

    • Alarm Voltage: 24 Vdc Nominal Sourcing Via ”TRP” Terminal

    Documentation

    Data Sheets
