Compressor Seals and Systems - Turbopac

Brand: Flowserve Pacific Wietz

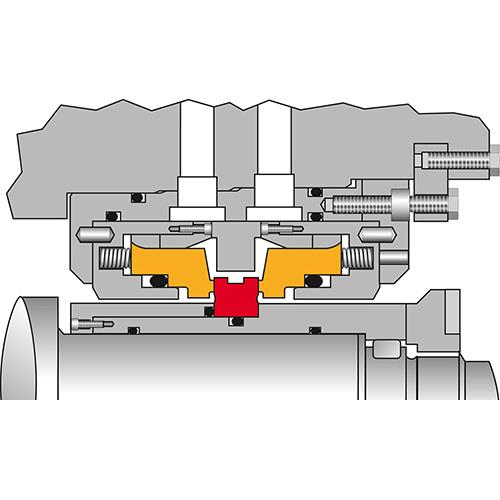

Turbopac oil lubricated mechanical seals arranged in the following configurations:

  • Product side, single mechanical seal combined with an atmospheric floating ring or labyrinth seal
  • Double mechanical seals in face to face arrangements
Features
  • Stationary spring assembly allows higher rotational speed.

  • Higher safety, efficiency and reduced oil loss from the low leakage rate.

  • Robust design provides long life and lower life cycle cost.

  • Dual acting static seal allowing for product containment under reverse pressure conditions.

  • Available in a cartridge design for simpler installation.

  • Designed to handle emergency shut downs for added safety.
  • Specifications

    Operating Parameters

    • Up to 300 bar (4300 psi), to 180° C (350° F), up to 100 m/sec (19,700 Fpm), to 260 mm (to 10.250”)

    Turbopac 2100

    • Bi-Directional Wet Compressor Seal

    Turbopac 368

    • Bi-Directional Wet Compressor Seal

    Turbopac 375

    • Bi-Directional Wet Compressor Seal
