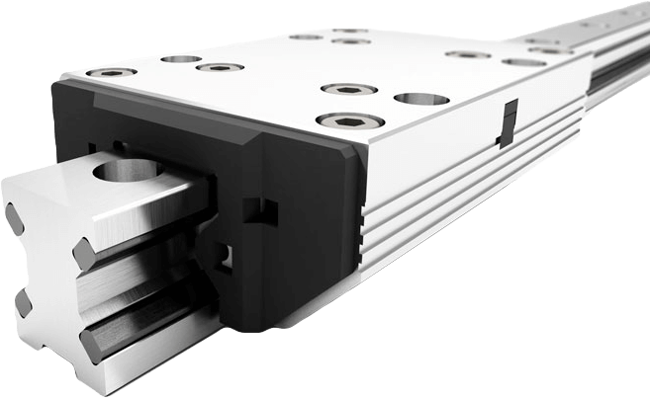

Linear Guides - FD Series
Brand: Franke GmbHFranke Aluminum Linear Systems are the best solution when it comes to speed and lightweight construction.
The design principle of Franke Linear Systems makes them highly dynamic, quiet and maintenance-free.
Franke Linear Systems can be modified individually to suit customer needs, thanks to their modular structure.
The slide resistance of the cassettes can be adjusted individually.
The guide rails are available in one piece up to 4000mm and can coupled to endless stroke lengths.
FeaturesProduct type
- Cassette and double rail
- Pair of roller shoes and pair of single rails
Characteristics
- Aluminum roller guide in standard version
- Integrated raceways made of steel
- Rollers with needle bearings for smooth and eays running
- Adjustable slide resistance
- Vmax 10m/s, acceleration 40m/s
- Maintenance-free over the entire lifetime
Stroke lengths
- Infinitely variable from 200 to 4000 mm
in one piece, infinitely coupled for longer
stroke lengths
Specifications
Brand
Material
- Roller Shoes and Rail Body: Aluminum
- Rollers and Raceways According to Type: Steel, Non-Corrosive Steel, Amagn. Steel
Temperature in Use
- -10° to +80° C
Vmax
- 10 m/s
Mounting Position
- Any
Lubrication
- Lifetime Lubricaton
- Maintenance Free
