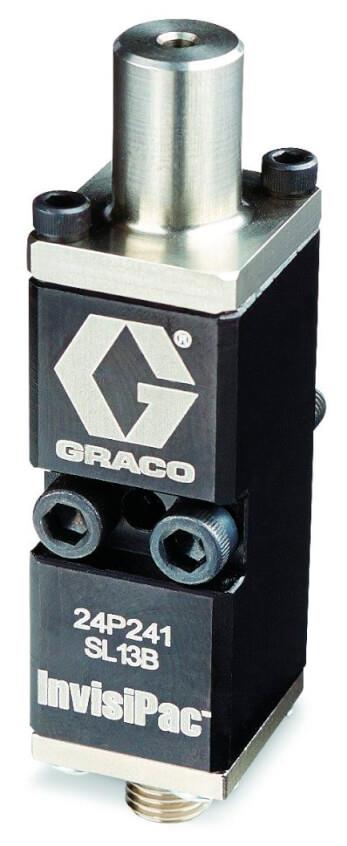

InvisiPac HM25c Tank-Free Hot Melt Gluing System

InvisiPac HM25c Tank-Free Hot Melt Gluing System

Brand: Graco, Inc
Add Product to My Catalog

InvisiPac HM25c Tank-Free Hot Melt Gluing System InvisiPac HM25c Tank-Free Hot Melt Gluing System InvisiPac HM25c Tank-Free Hot Melt Gluing System InvisiPac HM25c Tank-Free Hot Melt Gluing System
The InvisiPac HM25c tank-free hot melt dispensing system has a compact design making it easy to install in any packaging line.

And because all the controls are included in the internal circuit board, the unit can work independent from its control panel (ADM). This means that the controls can be operated from afar or integrated into other control panels.

Keep track of your hot melt adhesive usage Having a clear view on your production is key to achieve the best possible results.

Therefore, Graco standardly offers a material tracking capability on every InvisiPac hot melt system.

With material tracking you are able to: Track material usage and other production events, Easily graph your hot melt glue consumption to track cost per unit, saving you money and ensuring quality, and Receive alerts when material usage is out of desired range and performance notifications on your lines
Features
  • Quick start-up ā€“ ready in less than 10 minutes.
  • No tank, no char-plugged nozzles.
  • Delivers consistent adhesive viscosity.
  • No degraded material.
  • A consistent, reliable seal.
  • Little to no waste.
  • Better dispensing control.
  • Improved operator safety.
  • Freedom to use any adhesive you choose.
  • High performance with lasting components.

Specifications

Brand

30 Gallon Vibrating Hopper - Air Consumption

  • 29.1 mĀ² per hour

30 Gallon Vibrating Hopper - Required Air Pressure Supplied to 30 Gallon Vibrating Hopper

  • 0.7 MPa (7 bar)

Electrical - Input/Output Capability

  • 4 Inputs (0-30 V), 4 Outputs (240 Vac, 24 Vdc, 2 A)

Electrical - Maximum Applicator Wattage Per Channel

  • 400 W

General - Adhesive

  • 1/4" (6 mm), Round, Adhesive Pellets

General - Channels

  • 1" to 6"

General - Pump

  • Pneumatic Piston, 12: 1

General - Pump Output

  • 17.2 cc / cycle

General - Shaker Dimensions (Width x Height)

  • 0.12 x 1.22 M

General - System Dimensions

  • 483 x 1067 x 419 mm

General - Time to Temperature

  • Less than 15 minutes

Incoming Power - 24T918

  • 200-240 Vac, 1-Ph, 50/60 Hz, 32 A, 200-240 Vac, 3-Ph, Ī”, 50/60 Hz, 27A, 350-415 Vac, 3-Ph, Y, 50/60 Hz, 16 A

Incoming Power - 24T919

  • 200-240 Vac, 1-Ph, 50/60 Hz, 40 A, 200-240 Vac, 3-Ph, Ī”, 50/60 Hz, 27A, 350-415 Vac, 3-Ph, Y, 50/60 Hz, 16 A

Incoming Power - 24T920

  • 200-240 Vac, 1-Ph, 50/60 Hz, 40 A, 200-240 Vac, 3-Ph, Ī”, 50/60 Hz, 40 A350-415 Vac, 3-Ph, Y, 50/60 Hz, 30 A

Incoming Power - 24V429, 24V201

  • 400-480 Vac, 3-Phase, Ī”, 50/60 Hz, 14 A

Incoming Power - 24V430, 24V202

  • 400-480 Vac, 3-Phase, Ī”, 50/60 Hz, 14 A

Incoming Power - 24V431, 24V203

  • 400-480 Vac, 3-Phase, Ī”, 50/60 Hz, 14 A

IP Protection Rating

  • IP54

Melt Rate / Constant Throughput - HM25

  • 11.3 kg/hour

Melt Rate / Constant Throughput - HM50

  • 22.6 kg/hour

Pressure & Temperature Ranges - Ambient Temperature Range

  • 38Ā° to 204Ā° C

Pressure & Temperature Ranges - Control Temperature Range

  • 38-204Ā° C

Pressure & Temperature Ranges - Main System Air Supply Pressure Range

  • 0.55-0.69 MPa (5.5 to 7 bar)

Pressure & Temperature Ranges - Pump Operating Air Pressure Range

  • 0.14 to 0.69 MPa (0.7 to 7 bar)

Pressure & Temperature Ranges - Pump Operating Fluid Pressure Range

  • 1.7-8 MPa (17-80 bar)

Pump Flow Rate - HM25

  • 43.5 kg/hour

Pump Flow Rate - HM50

  • 59 kg/hour

Required Air Tubing Size - Minimum Air Tubing Inner Diameter

  • 12.7 mm

Required Air Tubing Size - Minimum Air Tubing Inner Diameter (Less Than 50 ft, 15.2 M of Tubing)

  • 9.5 mm

Sound - Sound Pressure Level, Pressure Level Measured 3.1 ft (1 meter) from Equipment

  • 77 dB(A)

Vacuum Transfer Specifications - Maximum Vacuum Transfer Hose Length

  • 9.1 M

Vacuum Transfer Specifications - Maximum Vacuum Transfer Hose Maximum Vertical Rise

  • 3.0 M

Vacuum Transfer Specifications - Vacuum Transfer Air Consumption at 40 psi (280 KPa, 2.8 bar)

  • 16.1 Scmh (Intermittent Duty, 4 % at 11.3 kg/hour)

Vacuum Transfer Specifications - Vacuum Transfer Air Consumption at 80 psi (550 KPa, 5.5 bar)

  • 29.2 Scmh (Intermittent Duty, 4 % at 11.3 kg/hour)

Vacuum Transfer Specifications - Vacuum Transfer Operating Pneumatic Pressure Range

  • 280-690 kPa (2.8-6.9 bar)

Weight - HM25

  • 36 kg

Weight - HM50

  • 48 kg

Wetted Parts - Approvals & Standards

  • UL 499, CSA 88, CE, ISO

Wetted Parts - Wetted Parts

  • PTFE, Chemically Resistant O-Rings, Aluminum, Stainless Steel, Zinc Plating, Carbon Steel, Brass, Carbide, Chrome
