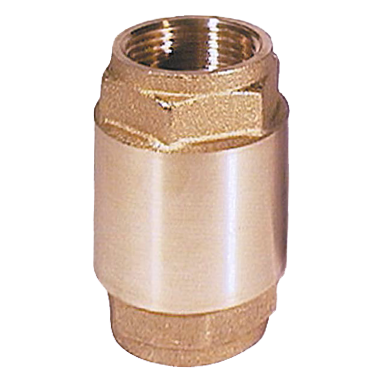

KOBOLD KUR model series non-return valves are used wherever it must be ensured that transferred liquids do not flow back against the prescribed direction of travel, such as due to pump shut-off, slope of the piping, self-arising vacuum conditions, etc.
Features
  • Two-part screwed body
  • Can be mounted in any position, preferably horizontal or vertical (note specified direction of flow)
  • G 3/8" to G 4" female connections
  • psi: 145 to 362.6 (bar: 10 to 25, kPa: 1,000 to 2,500) nominal pressure
  • -20° to 110° C (-4° to 230° F) temperature range
  • Brass Ms 58 body
  • NBR–Delrin gasket
  • Stainless steel 1.4310 spring

1 - 10 of 10 Part Numbers
KUR-TDR 10
KUR-TDR 10
  • Process Connection - G 3/8" Female
KUR-TDR 15
KUR-TDR 15
  • Process Connection - G1/2" Female
KUR-TDR 1H
KUR-TDR 1H
  • Process Connection - G 4" Female
KUR-TDR 20
KUR-TDR 20
  • Process Connection - G 3/4" Female
KUR-TDR 25
KUR-TDR 25
  • Process Connection - G 1" Female
KUR-TDR 32
KUR-TDR 32
  • Process Connection - G1-1/4" Female
KUR-TDR 40
KUR-TDR 40
  • Process Connection - G1-1/2" Female
KUR-TDR 50
KUR-TDR 50
  • Process Connection - G 2" Female
KUR-TDR 65
KUR-TDR 65
  • Process Connection - G 2-1/2" Female
KUR-TDR 80
KUR-TDR 80
  • Process Connection - G3" Female
1 - 10 of 10 Part Numbers

Specifications

BSP Connection

  • G 1” Female
  • G 1/2” Female
  • G 1-1/2” Female
  • G 1-1/4” Female
  • G 2” Female
  • G 2-1/2” Female
  • G 3” Female
  • G 3/4” Female
  • G 3/8” to G 4”
  • G 4” Female

Enclosure, Body Material

  • Brass ms 58

Gasket Material

  • NBR-Delrin

Mounting Position

  • Any Orientation

Nominal Pressure

  • psi: 145 to 363.6 (bar: 10 to 25, kPa: 1,000 to 2,500)

Spring Material

  • 301 Stainless Steel

Temperature Range

  • -20° to 110° C (-4° to 230° F)
