30550 Series Pedestal Pump

Brand: Jabsco

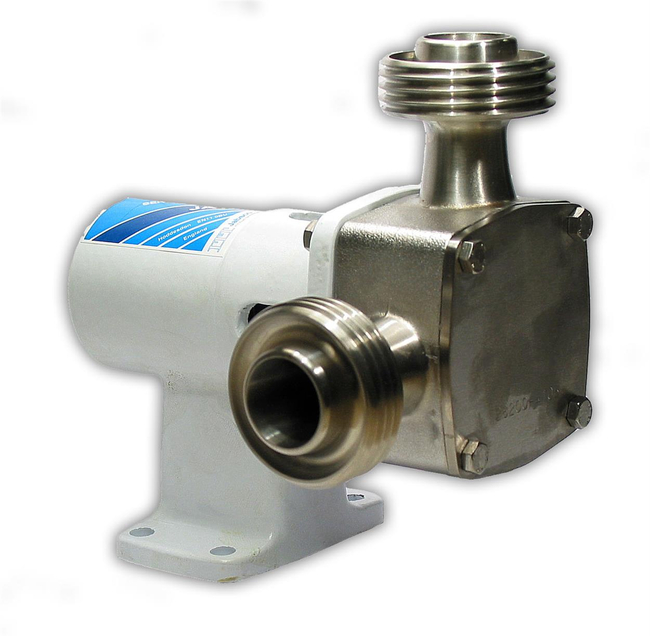

P40 Sanitary Stainless Steel Pedestal Pump.
Features
  • Handles soft solids - max. 8 mm diameter
  • Certified to US 3A Standard 02-11
  • Clean-In-Place (CIP) or easy strip clean
  • Handles viscosities up to 50,000 centiPoise
  • Minimal shear to thixotropic fluids
  • Easy to service and maintain

1 - 8 of 8 Part Numbers
30550-0005
30550-0005
Jabsco Pedestal Pump, 30550 Series
  • Impeller: Neoprene
  • Port Type: 1" ACME
  • Seal: Carbon/Ceramic Mechanical Type
  • Description: Standard Pressure, Neoprene Impeller, Carbon Seal, ACME Ports
30550-0015
30550-0015
Jabsco Pedestal Pump, 30550 Series
  • Impeller: High Pressure Neoprene
  • Port Type: 1" ACME
  • Seal: Carbon/Ceramic Mechanical Type
  • Description: High Pressure, Neoprene Impeller, Carbon Seal, ACME Ports
30550-0105
30550-0105
Jabsco Pedestal Pump, 30550 Series
  • Impeller: Neoprene
  • Port Type: 1" ACME
  • Seal: Tungsten Carbide/Ceramic hard faced mechanical seal
  • Description: Standard Pressure, Neoprene Impeller, Tungsten Carbide Seal, ACME Ports
30550-0115
30550-0115
Jabsco Pedestal Pump, 30550 Series
  • Impeller: High Pressure Neoprene
  • Port Type: 1" ACME
  • Seal: Tungsten Carbide/Ceramic Hard Faced Mechanical Seal
  • Description: High Pressure, Neoprene Impeller, Tungsten Carbide Seal, ACME Ports
30550-1005
30550-1005
Jabsco Pedestal Pump, 30550 Series
  • Impeller: Neoprene
  • Port Type: 1" Clamp
  • Seal: Carbon/Ceramic Mechanical
  • Description: Standard Pressure, Neoprene Impeller, Carbon Seal, Clamp Ports
30550-1015
30550-1015
Jabsco Pedestal Pump, 30550 Series
  • Impeller: High Pressure Neoprene
  • Port Type: 1" Clamp
  • Seal: Carbon/Ceramic Mechanical
  • Description: High Pressure, Neoprene Impeller, Carbon Seal, Clamp Ports
30550-1105
30550-1105
Jabsco Pedestal Pump, 30550 Series
  • Impeller: Neoprene
  • Port Type: 1" Clamp
  • Seal: Tungsten Carbide/Ceramic hard faced mechanical seal
  • Description: Standard Pressure, Neoprene Impeller, Tungsten Carbide Seal, Clamp Ports
30550-1115
30550-1115
Jabsco Pedestal Pump, 30550 Series
  • Impeller: High Pressure Neoprene
  • Port Type: 1" Clamp
  • Seal: Tungsten Carbide/Ceramic Hard Faced Mechanical Seal
  • Description: High Pressure, Neoprene Impeller, Tungsten Carbide Seal, Clamp Ports
1 - 8 of 8 Part Numbers

Specifications

Brand

Bearing Housing

  • Epoxy Coated Cast Iron

Bearings

  • Twin Single Row, Ball Typical

Body Material

  • 316 Stainless Steel

Impeller

  • 3-A Food Grade Neoprene or EPDM

Port Type

  • 1” ACME Threads with Bevel Seator Clamp Typical DK

Seal

  • Carbon / Ceramic Mechanical Typical
  • Optional: Tungsten Carbide/Ceramic Hard-Faced Mechanical Seal
  • Or Tungsten Carbide/Ceramic Hard-Faced Flushed Seal

Seal Elastomer

  • Food Grade Nitrile

Shaft Material

  • 316 Stainless Steel

Weight

  • 2.5 kg (5.5 lbs)
