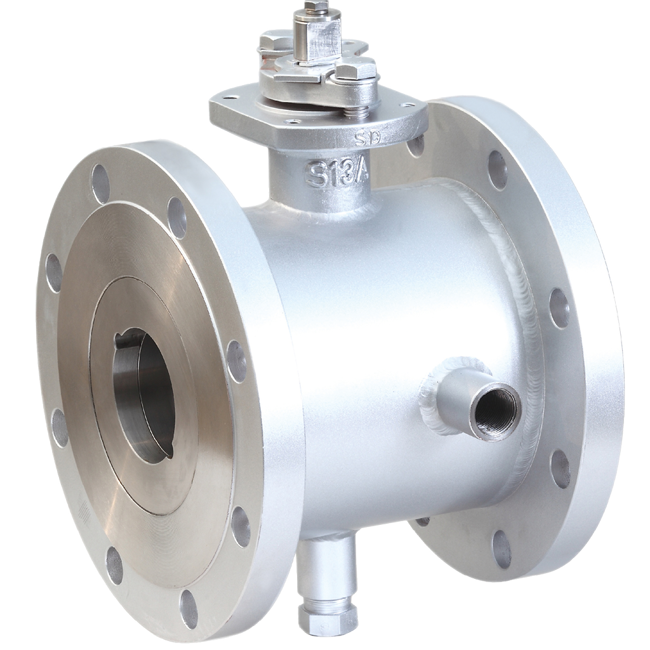

Emerson KTM Jacketed Ball Valve

Model Steam Jacketed

Brand: KTM
Add Product to My Catalog

KTM jacketed ball valve, designed with full flange to flange welded jacket, to effectively maintain the temperature of the media.
Features
  • Enhanced design with proven OM-II internal design features for maximum safety, sealing integrity and reliability.
  • Full jacketed design effectively maintains the temperature of the media.
  • High-pressure resistant jacket for supply of steam or cooling media up to 1.0 MPa (145 psi).
  • Reinforced PTFE bearing and packing rings for superior performance.
  • Split construction of cap and seat holder simplifies maintenance.
  • Compact and light-weight design.
  • Machined ISO 5211 top mounting flange.
  • Positive position indicator.
  • Blow-out proof shaft (DN 100/ NPS 4 and larger).
  • Shaft seals positioned low on the shaft to avoid fluid from sticking, minimizing excessive torque and shaft torsion.
  • In addition to standard E-seat, various seats are available. Each seat option will allow a wide range of performance, suitable for many applications.
  • PTFE / PFA copolymer: E-seat (standard).
  • PEEK seat (option).
  • Gratite® seat (option)

Specifications

Brand

Approvals & Certifications

  • Fire Safe, PED, Fugitive Emission, CE, SIL Capable

Body Design

  • Long Pattern

End Connection

  • Flanged

Material

  • 316 Stainless Steel, Carbon Steel

Media

  • Aggressive Liquids & Gases, Liquids

Pressure Class

  • ASME

Process Connection Type

  • Class 150 RF, Class 300 RF, Flanged, 300 RF, 150 RF

Seat / Seal Type

  • Ball, Metal-to-Metal, Soft Seal

Shutoff Class

  • Class V (FCI 70-2), API 598, Zero Leakage, Class VI (FCI 70-2)

Standards

  • ASME B16.34, API 608

Valve Size

  • NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3/4 / DN 20, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200

Valve Size Standard

  • DN, NPS

Valve Type

  • Ball, Floating Ball Valve

  • Asphalt Blending
  • Batch
  • Lube Blending
  • Machines
  • Product Blending
  • Mixing/Stirring
  • Product Transfer
  • Refining
