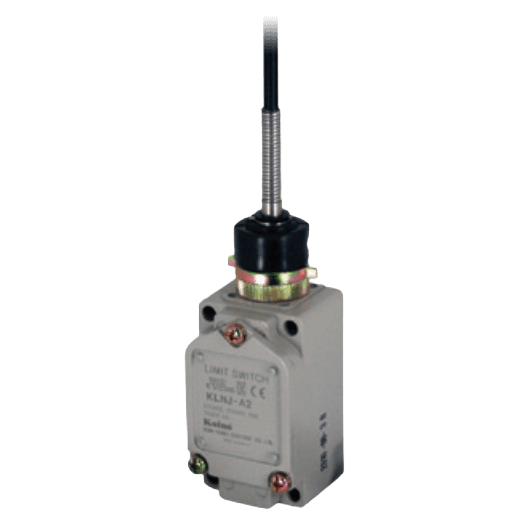

KLNJ-A2 Whisker Switch
Brand: KeleThe KLNJ-A2 whisker switch is a high-quality, multidirectional contact switch with a plastic coated spring-rod whisker. It is perfect for sensing damper blade position and can be used to provide position status of valve linkages or other mechanical devices.
Features:
- Plastic coated spring-rod whisker for long life
- Captive wiring cover screws to save time
- Heavy duty 10 A at 120 Vac contacts
Specifications
Brand
Approvals & Certifications
- CE
- NRNT8.E117960
- UL (C) Recognized
Conduit Connection
- 1/2" NPT
Electrical Connectors
- Screw Terminal - Wiring Terminations
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 10 A at 120 Vac
- 10 A at 24 Vac
- 6 A at 24 Vdc
Environmental Protection
- IP67
Operating Temperature
- -25° to 55° C (-13° to 131° F)
Rotation
- 15° Make - Switch Angle
- 6° Reset - Switch Angle
Switch Type
- Whisker Switch
