PVC Flow Meters & Switches
Brand: Orange ResearchOrange Research has been a supplier of PVC flow meters and PVC switches for water and corrosive liquids applications for over 20 years.
Now we’ve expanded the line to add more features. The primary wetted parts are PVC, Teflon for compatibility with water and liquid chemicals.
They’re perfect for difficult environments where aluminum, stainless steel or brass is not appropriate.

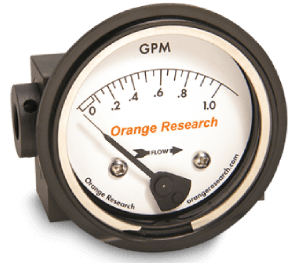

Our model 2221 and 2321 variable area PVC flow meters handle flow ranges from 0-1 to 0-10 GPM. Other ranges are available upon request.
The PVC bodies handle up to 200 psi pressures. Metal pressure bodies are optional to handle up to 3000 psi line pressures.
The dials, made from durable ABS plastic, measure up to 3.5” diameter.
Switches are standard options to alert users of alarm conditions and transmitters are also available upon request.
Accuracy is 2% F.S. and each unit is calibrated to NIST standards.
The units come with 1/4 or 1/2 inch female NPT process ports. Standard calibration is on water.
Specifications
Brand
Sensor Type
- variable area
Functions
- gauge, gauge/switch
Calibration Medium
- water (SG=1,V=1 CS)
Dial Sizes
- 2.5",3.5" style "M"
Dial Starting Mark
- approximately 10 % of Full Scale
Lens
- plastic
Range
- Minimum: 0-1 GPM, max: 0-2 GPM
Accuracy
- ± 2 % of full scale ascending after rap at room temperature for standard water
Repeatability
- ± 1 % of Full Scale
Maximum Line\min. Burst Pressure
- 200750 psig
Direction of Flow
- left to right
Porting Size & Orientation
- 1/4" NPT porting, in-line only
Standard Maximum Temperature
- 140F
Minimum Temperature
- 32° F
Switch Type
- 1 or 2 external hermetically sealed reed switch
Switch Adjustability
- upper 80 % of full scale ascending
Switch Dead band
- 5-20 % Full Scale
Switch Options
- -A SPST N/O (120 Vac,0.7A,70 VA,200 Vdc,1.0 A,50W)
- -B SPST N/C (120 Vac,0.25A,5 VA,175 Vdc,0.25A,5W)
- C SPDT (120 Vac, 0.25 A, 5 VA, 175 Vdc, 0.25 A, 5 W)
Switch Setting
- top of range ascending or other set points within adjustability ascending or descending
Static & Piston Seals
- Viton (EPDM optional)
Primary Wetted Parts
- PVC
Secondary Wetted Parts
- Teflon coated ceramic magnet, PVC cone, Teflon coated spring, spacers
Certification
- CSA (File 043810)
