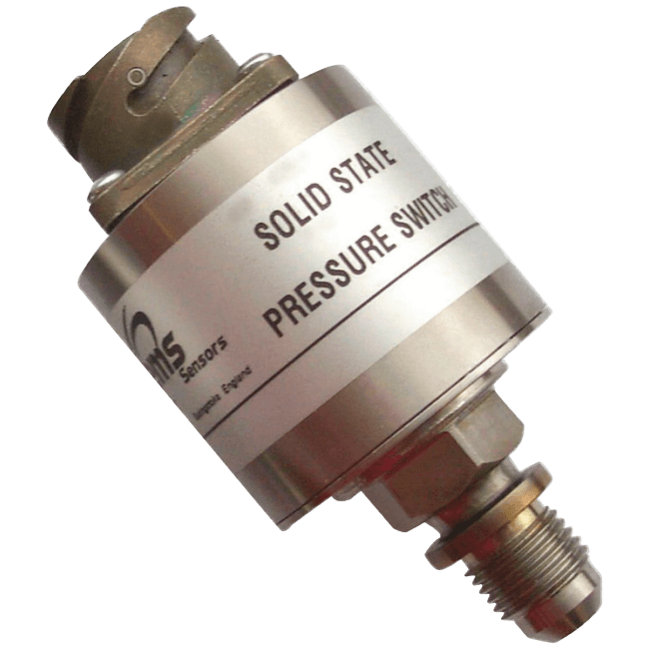

Gems Solid State Pressure Switch, PS98

PS98 Solid-State Pressure Switch

Brand: Gems Sensors, Inc
Add Product to My Catalog

Gems Solid State Pressure Switch, PS98
Gems proudly offers the PS98. Built from our proven CVD and ASIC design, the PS98 Solid-State pressure switch offers greater accuracy in rough environments.

This switch is an ideal alternative to electromechanical types when cycles exceed 50 cycles/minute and broad frequency response is needed.

In addition to a modular design, a host of pressure ports and electrical connections are available. Switch and switch-back points are factory set per customer specification.
Features
  • 0 to 6,000 psi and 0 to 400 bar
  • No moving parts - highly resistant to shock and vibration
  • Ideal for off-highway, mobile, demanding applications
  • Long cycle life

Specifications

Brand

Approvals & Certifications

  • CE (Limits Switch Voltage to 42 Vdc)

BSP Connection

  • G 1/4" Male
  • G 1/8" Female
  • 1/4" BSPT Male

Diaphragm Material

  • AISI 630 Stainless Steel, 17-4 PH

Electrical Contacts

  • Normally Closed
  • Normally Open

Environmental Protection

  • IP65: 10-6 MIL Connector "C", DIN "G"
  • IP68: Submersible Cable "M"

NPT Connection

  • 1/2"-14 Male NPT
  • 1/4" NPT Female
  • 1/4" NPT Male with Snubber
  • 1/4"-18 NPT Male
  • 1/8"-27 Male NPT

Operating Temperature

  • -40° to 127° C (-40° to 260° F)

Pressure Cycles

  • Fatigue Life: Designed for more than 100 Million Full Scale Cycles

Pressure Range

  • psi: 0 to 6,000 (kPa: 0 to 41,370, bar: 0 to 413.7)

Proof Pressure

  • 2 x Full Scale

Repeatability

  • 0.25 % of Full Set Point Range at 20° C (70° F)

SAE Connection

  • 7/16"-20 SAE Male
  • 9/16"-18 SAE Male

Set Point - Decreasing

  • bar: 0 to 413.7
  • kpa: 0 to 41,370
  • psi: 0 to 6,000

Set Point - Increasing

  • bar: 0 to 413.7
  • kpa: 0 to 41,370
  • psi: 0 to 6,000

Shock

  • 20 G, 11 ms per MIL-STD-81-E Method 516.4 Procedure 1

Supply Voltage

  • 24-72 Vdc

Switch Type

  • Relay
  • Transistor

Vibration

  • 70 G Peak-to-Peak Sinusoidal, 5 to 2000 Hz
  • Random Vibration: 20 to 2000 Hz at Approximately 20 G Peak per MIL-STD-810E Method 514.4

Wetted Materials

  • AISI 630 Stainless Steel, 17-4 PH
  • Fitting: 316 Stainless Steel

Documentation

Data Sheets
