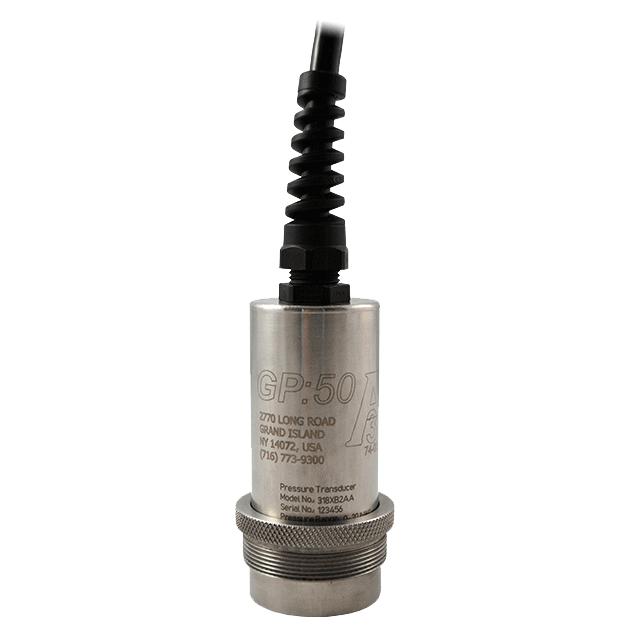

Model 218 Pressure Transmitter

Brand: GP:50 New York Ltd

Features
  • Output Signal: 0 to 5 Vdc
  • Excitation Voltage: 10.5 to 32 Vdc
  • Pressure Range: 0 to 30" WC (0 to 1,000 psi, 0 to 68.95, 0 to 6,895 kPa
  • Burst Pressure: 5 times FSO
  • Proof Pressure: 3 times FSO
  • Electrical Connections: 8 foot, 6 conductor, 18 AWG Hytrel jacketed cable
  • Process Connection: 1-3/4" 20 UNF thread to 316 Stainless steel weld nipple
  • Temperature Range:
    • Operating: -18° to 85°C (0° to 185°F)
    • Compensated: -1° to 77°C (30° to 170°F)
    • Effect on Zero/Span: <±2.0% Full Scale Output at 100°F
  • Static Accuracy: ±0.5%, ±0.2%, ±0.1% Full Scale Output
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted Parts: 316 Stainless Steel

Specifications

Accuracy

  • ± 0.1 % of Full Scale Output
  • ± 0.2 % of Full Scale Output
  • ± 0.5 % of Full Scale Output

Burst Pressure

  • 5 times Full Scale Output

Circuit Protection

  • EMI/RFI Protected
  • Reverse Polarity

Compensated Temperature

  • -1° to 77° C (30° to 170° F)

Electrical Connectors

  • 8 feet, 6-Conductor, 18 AWG Hytrel Jacketed Cable. barometric Vent Provided where Needed on Ranges < 300 psi (21 bar, 2,068 kPa)

Enclosure, Body Material

  • 316 Stainless Steel

Input Signal

  • 8 mA Nominal

Load Impedance

  • 3,000 ohms Min.

Operating Temperature

  • -18° to 85° C (0° to 185° F)

Output

  • 5 Vdc

Pressure Range

  • bar: 0.15 to 59
  • Inches WC: 0 to 30
  • kPa: 0 to 6,895
  • psi: 0 to 1,000

Proof Pressure

  • 3 times Full Scale Output

Span & Zero Effect

  • < ± 2.0 % of Full Scale Output at 38° C (100° F)

Wetted Materials

  • 316 Stainless Steel

Zero Balance

  • ± 2 % of Full Scale Output
