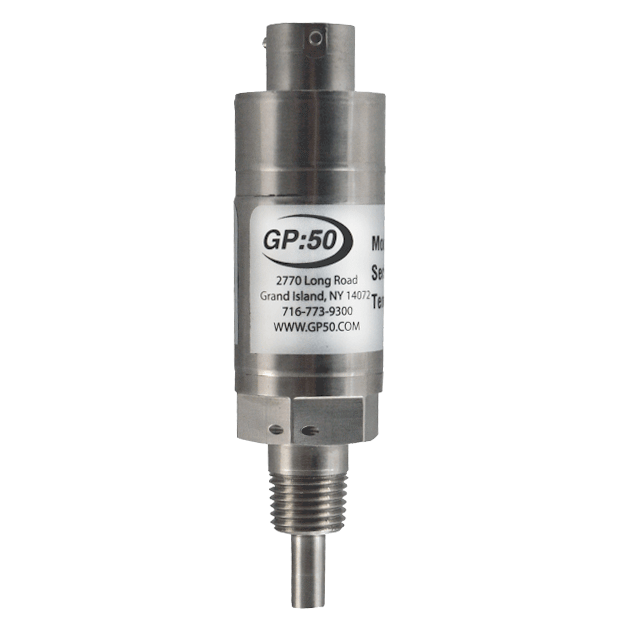

Model 340T Temperature Transmitter
Brand: GP:50 New York Ltd
Features
- Output Signal: 4-20 mA
- Excitation Voltage: 9 to 36 Vdc
- Probe Length: 3/4" to 7"
- Electrical Connections: 6-pin Bendix PT1H-10-6P stainless steel
- Process Connection: 1/4" Male NPT
- Temperature Range:
- -18° to 121°C (0° to 250°F)
- -18° to 149°C (0° to 300°F)
- -40° to 82°C (-40° to 180°F)
- -40° to 121°C (-40° to 250°F)
- Static Accuracy: ±3° F
- Materials of Construction:
- Housing: 300 Series Stainless Steel
- Wetted Parts: 316L Stainless Steel
Specifications
Brand
Accuracy
- ± 1.7° C (± 3° F)
Ambient Temperature Range
- Maximum
Electrical Connectors
- 6-Pin Bendix PT1H-10-6P Stainless Steel or Equivalent Standard, Options Available
Enclosure, Body Material
- 300 Stainless Steel
Insulation Resistance
- ≥ 100 megaohms
Load Impedance
- 1350 ohms Max.
NPT Connection
- 1/4” NPT Male
Output
- 2.0 mA - Max.
- 4-20 mA ± 1 % of Full Scale Output
Process Temperature
- 149° C (300° F) - Max.
Response Time
- < 2 seconds
Supply Voltage
- 9 to 36 Vdc
Temperature Range
- -18° to 121° C (0° to 250° F)
- -18° to 149° C (0° to 300° F)
- -40° to 121° C (-40° to 250° F)
- -40° to 82° C (-40° to 180° F)
Wetted Materials
- 316L Stainless Steel
Zero Balance
- 4.0 mA ± 1 % of Full Scale Output at 21.1° C (70° F)
