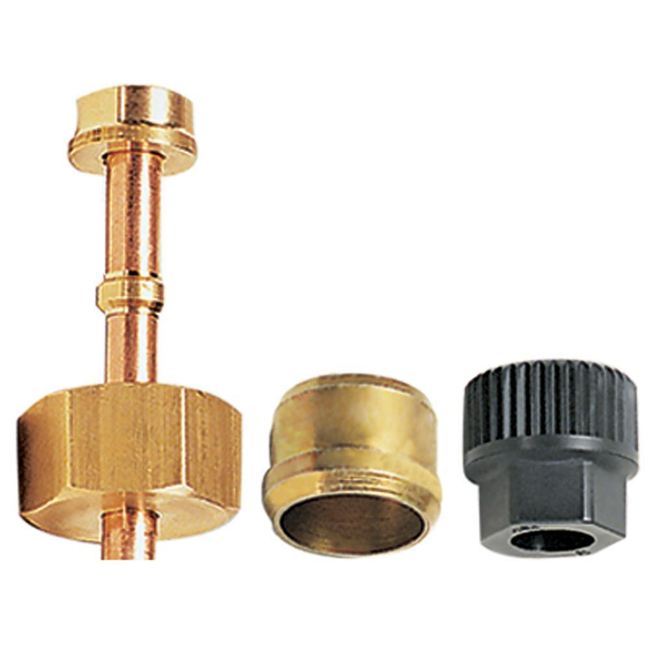

Complementary Brass Fittings, Reducers, Olives & Nuts

Brand: Legris - by Parker

This innovative reducer system, using a full range of nuts and olives, enables different diameters of steel, copper, brass or polymer tubes to be fitted onto a single Parker Legris compression fitting.
Features
Efficient Solution
  • Reduces envelope dimensions
  • Quick and easy to assemble, whatever the diameters and tube material
  • Improved stock management
  • Silicone-free
Multiple Combinations
  • A single connector for up to 4 different tube materials and sizes
    • Example:
    • polymer tube 4 mm O.D.
    • copper tube 8 mm O.D.
    • brass tube 12 mm O.D.
    • braided PVC hose 12 mm I.D.
  • A full range of olives / Ferrules and nuts to optimise all assembly operation

Specifications

Tube O.D.

  • 0.16 to 1.10 inch

Box Quantity

  • 1 to 50

Shape

  • Straight

Materials of Construction

  • Technical Polymer
  • Steel Zinc-Plated
  • Brass

Connection Type

  • Compression

Weight

  • 0.001 to 0.180 kg

Specifications Met

  • RoHS
  • REACH

Tube O.D.

  • 4 to 28 mm

Maximum Working Temperature

  • 100° C
  • 212° F

Minimum Working Temperature

  • -60° C
  • -76° F

Applications

  • Automotive Process
  • Packaging
  • Manufacturing Equipment
  • Compressed Air/Inert Gas
  • Vaccum
  • Pneumatics

Media

  • Machining Oil
  • Disinfectants
  • Chemical Fluids
  • Compressed Air
  • Hydraulic Oil
  • Fuel
  • Water

Maximum Working Pressure

  • 55 MPa
  • 7977 psi
  • 550 bar

Product Type

  • Complementary Brass Compression Fittings

Nut Material

  • Brass

Sleeve Material

  • Brass

  • Pneumatic Machinery Equipment at Medium and High Pressure
  • Lubrication Systems
  • Cooling Systems
  • Welding Robots
  • Suitable for Vacuum Applications
