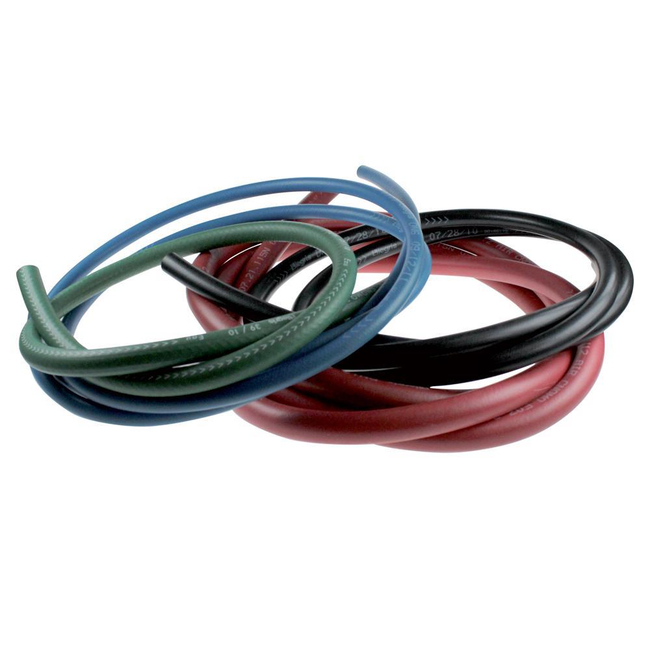

Self-Fastening Nitrile Butadiene Rubber (NBR) Hose
Brand: Legris - by ParkerParker Legris self-fastening hose is designed according to CNOMO E07.21.115N*.
This range of hose should be used with Legris barb connectors and provides both the reliability of self-fastening technology and simplicity of installation.
FeaturesExceptional Endurance
- Unsurpassed resistance to repetitive flexing
- Protection against spark and flame
- Abrasion and crush-resistant
- UV-resistant
Ideal for In-Plant Automotive
- Excellent ozone resistance
- Perfect for cooling systems
- Maximum flow with no pressure drop
- 4 colors for immediate circuit identification
- Silicone-free
Ready-To-Use
- No lubrication, additive (grease, oil, …etc), or preparation time required
- To connect: push the hose fully home against the fitting shoulder
- To disassemble: cut the hose on the barbed side of the fitting
Specifications
Brand
Number of Tubes
- 1
Minimum Working Temperature
- -4° F
- -20° C
Maximum Working Temperature
- 212° F
- 100° C
Maximum Working Pressure
- 232 psi
- 1.6 MPa
Minimum Bend Radius
- 60 to 170 mm
Nominal Hose I.D. (DN)
- 1/4 to 3/4”
Specifications Met
- RoHS
- REACH
Media
- Compressed Air
- Coolants
Hose I.D.
- 13 to 27 mm
Applications
- Pneumatics
- Cooling
- Manufacturing/Industrial
- Automotive Process
Weight
- 6.5 to 26.5 kg/Package
- Compressed Air and Coolants Conveying
- Applications Subjected to Flying Sparks
- Welding Robots
- Industrial Cooling Systems
