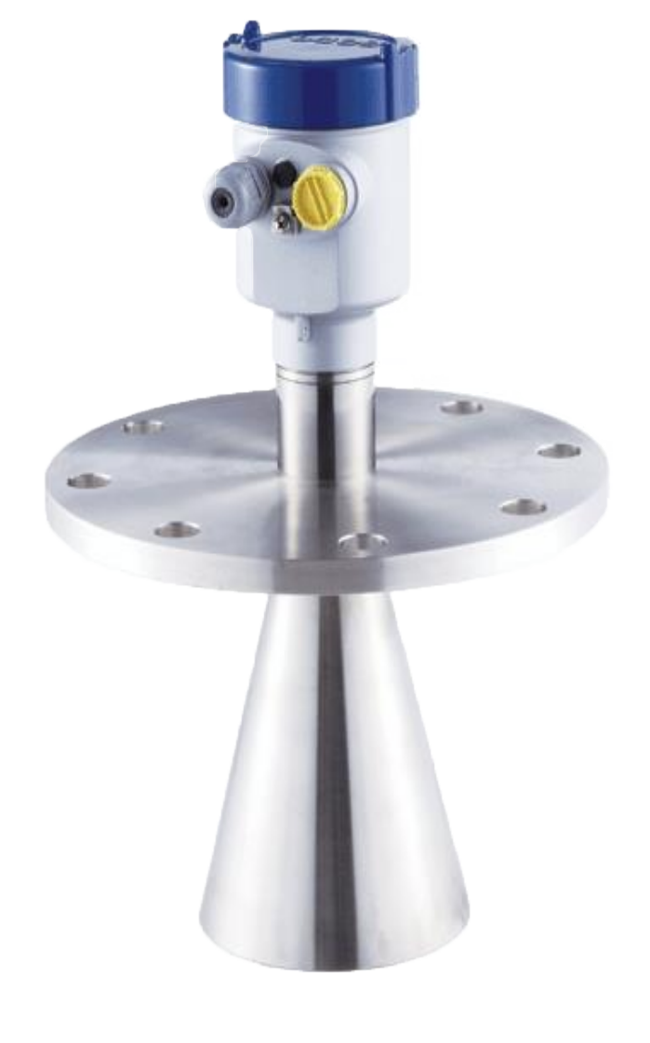

CW53 Radar Level Meter
Brand: BM TechnologiesCW53 for liquids and solids Applications: Level measurement in liquids and solids (short-range).
Suitable for hard working conditions.
The Radar level meters of BM compact wave 6.3 Ghz series are excellent devices for no contact level measurement.
The microwave impulses, emitted by the radar’s antenna, travel at speed of light and a part of their energy, reflected by the surface of the medium to be measured, is received by the same antenna.
The period of time (flying time) between the emission and the arrival of the impulses, is proportional to the existing distance between the antenna and the surface of the medium to be measured.
Specifications
Brand
Accuracy
- ± 0.4” (± 10 mm)
Applications
- Level Measurement
Cable Entry
- 1 x PG 13.5
Communication
- Output Signal: HART
Consumption
- Absorption: 2 W for Supply 4-Wires Version
- Absorption: 22.5 mA - Max.
- Absorption: 4 VA, Max.
Current
- Fixed Signal for Anomaly: 20.5 mA
- Fixed Signal for Anomaly: 22 mA
- Fixed Signal for Anomaly: 3.8 mA
Display
- Resolution Display: 0.039” (1 mm)
Electrical Connectors
- 1/2” NPT
- Wiring: M20 x 1.5
Enclosure, Body Material
- 316L Stainless Steel
- Aluminum
- Plastic PBT-FR
Environmental Protection
- IP66
- IP67
Flange Material
- AISI 316L Stainless Steel
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 16
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 16
Flange Size - 4” (DN 100)
- 4” (DN 100) - PN 16
Flange Size - 6” (DN 150)
- 6” (DN 150) - PN 16
Flange Size - 8” (DN 200)
- 8” (DN 200) - PN 16
Frequency
- 6 GHz
- Resistance to Vibration: 10 to 150 Hz
- Ripple Allowed: 100 to 100,000 Hz for Supply 2-Wires Version
Humidity
- < 95 % Relative Humidity
Input
- Input Voltage: 15-36 Vdc for Supply 2-Wires Version
- Input Voltage: 230 Vac ± 10 % for Supply 4-Wires Version
- Input Voltage: 24 Vdc ± 10 % for Supply 4-Wires Version
Length
- Process Connection Length: 1.96 to 11.8” (50 to 30 mm)
Materials of Construction
- Antenna: 316L Stainless Steel
- Antenna: Polypropylene
- Antenna: PTFE
Measuring Range
- 0 to 114.8 feet (0 to 35 metres)
Measuring Time
- Integration Time: 0 to 99 seconds Programmable
- Interval of Measuring: Approximately 1 second
Operating Pressure
- psi: -14.5 to 580 (kPa: -100 to 4,000, bar: -1 to 40)
Operating Temperature
- -40° to 200° C (-40° to 392° F)
Output
- Output Signal: 4-20 mA (2 & 4-Wires)
Process Connection Material
- AISI 316L Stainless Steel
Resistance
- Maximum
Resolution
- 1.6 µA
Rotation
- Beam Angle: 20°
- Beam Angle: 24°
- Beam Angle: 26°
- Beam Angle: 29°
Sensor, Probe Type
- Rod
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Supply Voltage
- 198-242 Vac
- 22.8-26.4 Vdc
Update Time
- Interval of Updating: Approximately 1 second
