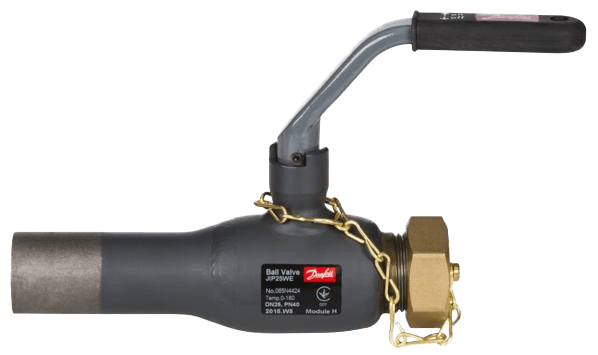

JIP-WE Draining Valve
Brand: DanfossDanfoss Standard JIP™ ball valves is a range of reduced bore shut off valves developed for District Heating and District Cooling networks, with circulating medium.
It is a range of steel ball valves with fully welded body.
The valve design makes them ideal for building installation due to:
- Energy saving: with optimum flow design valves have highest Kv on the market and consequently lowest pump energy costs
- Long lifetime and optimal tightness due to design and material selection in ball seal and stem seal (carbon reinforced PTFE)
- The valves are maintainance free, besides the shut off valves in the core distribution network Danfoss offers a range of supplementary valves, e.g. hot tap valves, branching valves, twin valves and draining valves
1 - 10 of 10 Part Numbers
065N4322
- Model - Hex Version
- Connection - DN 15, PN 40
065N4323
- Model - Hex Version
- Connection - DN 20, PN 40
065N4324
- Model - Hex Version
- Connection - DN 25, PN 40
065N4325
- Model - Hex Version
- Connection - DN 32, PN 40
065N4326
- Model - Hex Version
- Connection - DN 40, PN 40
065N4327
- Model - Hex Version
- Connection - DN 50, PN 40
065N442
- Model - L-Handle
065N4422
- Model - L-Handle
- Connection - DN 15, PN 40
065N4423
- Model - L-Handle
- Connection - DN 20, PN 40
065N4424
- Model - L-Handle
- Connection - DN 25, PN 40
1 - 10 of 10 Part Numbers
Specifications
Brand
Approvals & Certifications
- PED 97/23/EEC Module H1
- EN 12266 Part 1 P10-P11-P12 & Part 2 F20
- OHSAS 18001
Ball Material
- Stainless Steel
Enclosure / Body Material
- Welded Body: Steel Ball Valves
Flange Material
- Steel P245 GH
Flow Rate
- 6.47 to 108.3 scfm (11 to 184 m³/hour)
Handle Assembly Material
- Steel
Materials of Construction
- Carbon Reinforced PTFE: Washer
- Pipe Insert, Guide Pipe: Stainless Steel
- Welding End, Shell, Guding Pipe: Steel P235 GH
Media
- Circulation Water
- Glycolic Water up to 50 %
Nut & Bolt Material
- Steel - Compression Nut
Packing Material
- Steel P235 GH, P245 GH
Pressure Range
- psi: 362.6 to 580.2 (MPa: 2.5 to 4, bar: 25 to 40)
Ring Material
- Carbon Reinforced PTFE - Stem Sealing Ring
- Compression Ring: Steel
- Support Ring: Stainless Steel
Seal Retainer
- Steel P235 - Ball Seal Retainer
Seat / Seal Material
- Ball Seal: Carbon Reinforced PTFE
Spring Material
- Disc Spring: Domex 650 MC
- Pin: Steel
Stem Material
- Stainless Steel
Storage Temperature
- -40° C (-40° F) Min.
Temperature Range
- 0° to 180° C (32° to 356° F)
Valve Type
- Manual
Welded Connection
- DN 15 Weld End
- DN 20 Weld End
- DN 25 Weld End
- DN 32 Weld End
- DN 40 Weld End
- DN 50 Weld End
