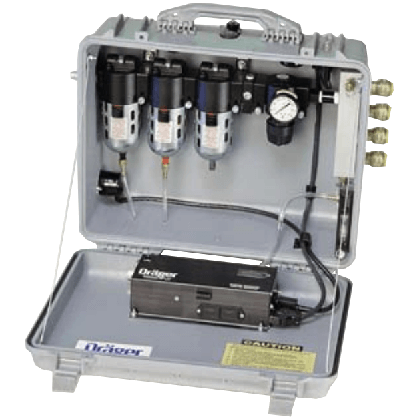

Air Filtration System
Brand: Drägerwerk AG & Co. KG
The Draeger Safety Air Filtration Systems are designed to provide Grade D breathing air to workers with supplied air respirators in hazardous or IDLH atmospheres.
Capable of supplying 50 cfm or 100 cfm of continuous positive pressure air, the filtration systems use plant or mobile compressors as the primary air supply.
The three stage filtering system effectively removes solid particles, moisture, hydrocarbon vapors and odor from the air source.
To meet federal, state and local regulations, a carbon monoxide monitor continuously checks CO levels.
NIOSH Approved for use with up to 300 feet of hose with Drarger Supplied Air Respirators (SAR).
Features- Portable Pelican case
- Meets or exceeds OSHA requirements
- CO monitor with internal RFI/EMI filters eliminates radio interference
- Locking pressure gauge prevents accidental pressure change
- Pressure differential indicator on each stage
- CO level display permits continuous monitoring of CO levels
- Audible 120 dBA alarm
- Auxiliary battery supply
- Visual alarms indicate low battery, high CO levels, and normal operation
- Modular filter design for easy maintenance
Specifications
Brand
Approvals & Certifications
- NIOSH
NPT Connection
- 1/2" NPT Female
Pressure Range
- Inlet Pressure - psi: 50 to 150 (kPa: 345 to 1,034, bar: 3.45 to 10.34)
Voltage
- 115 Vac and/or Dual 9-15 Vdc Battery (Batteries Not Included with Shipment)
