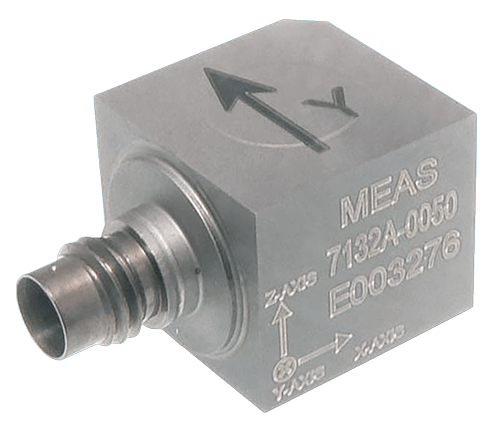

7132AHT Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 7132AHT is a high temperature miniature triaxial IEPE accelerometer available in ±50 to ±500g dynamic ranges.
The accelerometer features a hermetically sealed titanium construction with a 4-pin Microtech connector interface. The model 7132HT incorporates stable piezo-ceramic crystals in annular shear mode with an operating temperature range of -55 to 163°C. The accelerometer offers a flat frequency response up to >10 kHz.
Features- 4-Pin Connector Interface
- Wide Bandwidth up to 10 kHz
- Adhesive or Stud Mounting
- -55° to 163°C Operating Range
- Annular Shear Mode Crystals
- Stable Temperature Response
1 - 12 of 16 Part Numbers
7132AHT-0050
- Range - ± 50 G
- Electrical Connection - 4-Pin Receptacle
7132AHT-0050-01
- Range - ± 50 G
- Electrical Connection - M5 x 0.8 6 G
7132AHT-0050-02
- Range - ± 50 G
- Electrical Connection - 10-32 UNF-2B
7132AHT-0050-03
- Range - ± 50 G
- Electrical Connection - Case Isolated
7132AHT-0100
- Range - ± 100 G
- Electrical Connection - 4-Pin Receptacle
7132AHT-0100-01
- Range - ± 100 G
- Electrical Connection - M5 x 0.8 6 G
7132AHT-0100-02
- Range - ± 100 G
- Electrical Connection - 10-32 UNF-2B
7132AHT-0100-03
- Range - ± 100 G
- Electrical Connection - Case Isolated
7132AHT-0500
- Range - ± 500 G
- Electrical Connection - 4-Pin Receptacle
7132AHT-0500-01
- Range - ± 500 G
- Electrical Connection - M5 x 0.8 6 G
7132AHT-0500-02
- Range - ± 500 G
- Electrical Connection - 10-32 UNF-2B
7132AHT-0500-03
- Range - ± 500 G
- Electrical Connection - Case Isolated
1 - 12 of 16 Part Numbers
Specifications
Accuracy
- ± 1 % of Full Scale Output - Non-Linearity
Approvals & Certifications
- CE
- RoHS
Bandwidth
- 10 kHz
Current
- 2-10 mA - Excitation Current
Electrical Connectors
- 4-Pin Receptacle
Enclosure, Body Material
- Titanium
Frequency
- 0.8 to 10,000 Hz
Humidity
- Hermetically Sealed
Mounting
- Adhesive or Stud Mount
NACE & NIST
- NIST Traceable Amplitude Calibration from 20 Hz to ± 2 dB Frequency Response Limit
Operating Temperature
- -55° to 163° C (-67° to 325° F)
Output
- ± 5 V - Full Scale Output Voltage
- 22-30 Vdc - Compliance Voltage
Output Load
- < 100 ohms - Output Impedance
Output Noise
- 0.001 to 0.005 G RMS
Sensitivity
- < 5 % - Transverse Sensitivity
- 2.5-100 mV/g
Sensor, Probe Material
- Ceramic
Shock
- 5,000 G - Shock Limit
Storage Temperature
- -55° to 163° C (-67° to 325° F)
Supply Voltage
- 6-15 Vdc - Bias Voltage
- Automotive Testing
- General-purpose Usage
- High Frequency Applications
- High Temperature Testing
- Laboratory Testing
- Vibration & Shock Monitoring
