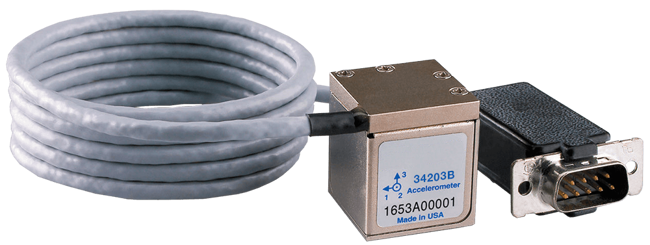

34203B Plug & Play Accelerometer

Brand: American Sensor Technologies Inc

The 34203B Accelerometer has each mutually orthogonal axis precisely aligned, typically within 3/4 degree of the theoretical ideal.

This provides the accuracy required by most measurement applications without any compensation. Choose the bandwidth option best suited for your application to measure up to ±5 g accelerations on each of three axes. Each axial sensor has been tested over the -40° to 85° C temperature range and has has a nominal full scale output swing of ±2 volts.

The zero g output level is nominally +2.5 volts and temperature compensated over the range of -40° to 85° C. Precise values for each axis are available on the included calibration certificate. Custom versions of the 34203B can be provided for applications with different requirements.

1 - 2 of 2 Part Numbers
34203B-R005-B1K0-T004
34203B-R005-B1K0-T004
  • Range - ± 5 G
  • Bandwidth - 0 to 1,000 Hz
  • Termination - 4 Feet Cable with DB9M
34203B-R005-B2K5-T004
34203B-R005-B2K5-T004
  • Range - ± 5 G
  • Bandwidth - 0 to 2,500 Hz
  • Termination - 4 Feet Cable with DB9M
1 - 2 of 2 Part Numbers

Specifications

Accuracy

  • ± 0.2 % of Full Scale Reading - Non-Linearity

Frequency

  • 2,500 Hz - Upper Cut-Off Frequency

Input

  • 13 mA - Input Current
  • -20 to 36 V - Input Voltage Limits
  • 8.5-36 V - Input Voltage - Operating

Input Impedance

  • 30 to 50 kiloohms - Self Test Input Impedance

Materials of Construction

  • Aluminum - Nickel-Plated

Mounting

  • Mounting Hole

Output

  • 0.50-4.50 V - Output Voltage Swing

Output Noise

  • 200 µg/√Hz - Noise Density

Sensitivity

  • ± 0.25 % - Transverse Sensitivity
  • 400 mV/g at 25° C
  • 6.45 mV/°C

Shock

  • ± 3,500 G

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Thermal Drift

  • ± 0.015 G - Zero G Bias Level
  • ± 0.5 % at 25° C - Sensitivity

Zero Offset

  • 2.5 ± 0.015 V at 25° C
