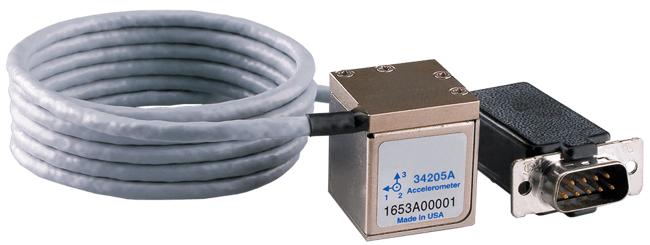

34205A Plug & Play Accelerometer

Brand: American Sensor Technologies Inc

The 34205A accelerometer provides the accuracy required by most measurement applications without any compensation.

Critical applications requiring higher accuracy can use the alignment data provided on the calibration certificate to compensate for any small residual error. Choose the bandwidth and range options best suited for your application to measure ±5 g, ±10 g, ±20 g, ±25 g, ±30 g, ±40 g, or ±50 g accelerations on each of three axes.

Each axial sensor has been tested over the -40° to 85° C temperature range and has a nominal full scale output swing of ±2.25 volts. The zero g output level is nominally +2.5 volts. Precise values for each axis are available on the included calibration certificate.

1 - 12 of 33 Part Numbers
34205A-R005-B1K0-T004
34205A-R005-B1K0-T004
  • Range - ± 5 G
  • Bandwidth - 0 to 1,000 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R005-B208-T004
34205A-R005-B208-T004
  • Range - ± 5 G
  • Bandwidth - 0 to 208 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R005-B380-T004
34205A-R005-B380-T004
  • Range - ± 5 G
  • Bandwidth - 0 to 380 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R005-B944-T004
34205A-R005-B944-T004
  • Range - ± 5 G
  • Bandwidth - 0 to 944 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R010-B1K0-T004
34205A-R010-B1K0-T004
  • Range - ± 10 G
  • Bandwidth - 0 to 1,000 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R010-B208-T004
34205A-R010-B208-T004
  • Range - ± 10 G
  • Bandwidth - 0 to 208 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R010-B380-T004
34205A-R010-B380-T004
  • Range - ± 10 G
  • Bandwidth - 0 to 380 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R010-B944-T004
34205A-R010-B944-T004
  • Range - ± 10 G
  • Bandwidth - 0 to 944 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R020-B1K4-T004
34205A-R020-B1K4-T004
  • Range - ± 20 G
  • Bandwidth - 0 to 1,400 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R020-B208-T004
34205A-R020-B208-T004
  • Range - ± 20 G
  • Bandwidth - 0 to 208 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R020-B2K0-T004
34205A-R020-B2K0-T004
  • Range - ± 20 G
  • Bandwidth - 0 to 2,000 Hz
  • Termination - 4 Feet Cable with DB9M
34205A-R020-B380-T004
34205A-R020-B380-T004
  • Range - ± 20 G
  • Bandwidth - 0 to 380 Hz
  • Termination - 4 Feet Cable with DB9M
1 - 12 of 33 Part Numbers

Specifications

Accuracy

  • ± 0.15 % of Full Scale Reading - Non-Linearity
  • ± 1° C (± 1.8° F)

Frequency

  • 0 to 2,000 Hz - Frequency Response

Input

  • 33-50 mA - Input Current
  • 8-18 V - Input Voltage (Operating)

Mounting

  • Mounting Holes

Output

  • 0.50-4.50 V - Output Voltage Swing

Output Noise

  • 10 μg/√Hz - Noise Density
  • 50 μg/√Hz - Noise Density

Sensitivity

  • 40 mV/g
  • 6.45 mV/°C

Shock

  • ± 5,000 G

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Thermal Drift

  • ± 2 % at 25° C - Sensitivity

Zero Offset

  • 2.5 ± 0.010 V - Zero G Bias Level
