Inline 1100 Constant Pressure System

Brand: Franklin Electric Co, Inc.
Add Product to My Catalog

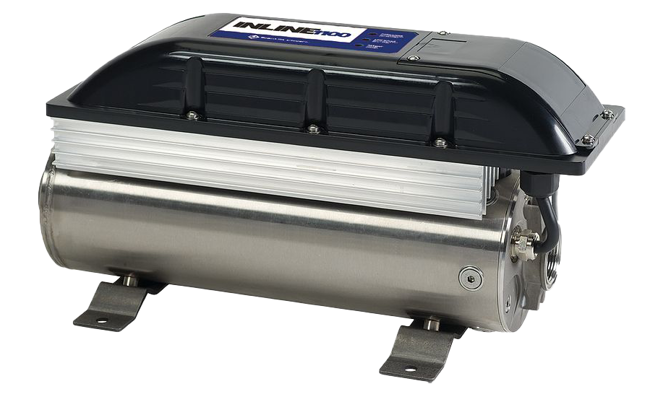

Inline_1100_Angled_Right_Hero.png Inline_1100_Angled_Left_Hero.png
The Inline 1100 is a constant pressure system built for both private wells and municipal/city water systems.
Municipal/City Water Systems
Franklin now has an affordable answer for homeowners not satisfied with the water pressure they receive from their city water provider. The Inline 1100 is a simple, efficient product that provides pressure to every fixture all the time.

Private Well Systems

The Inline 1100 provides a constant pressure solution for homes with low-yielding wells, where storage tanks or cisterns are used.

Want to add a sprinkler system?
The Inline 1100 is versatile and can be used in place of the standard booster pump often needed for a sprinkler pump system. In addition to its weatherproof NEMA 4 electronics enclosure, the Inline 1100 will adjust the overall system pressure, allowing complete water coverage and shorter system run times.
Features
  • Pump, motor, drive, and pressure switch in one box as a packaged system
  •  Small and compact design fits into small areas, even between floor joists
  •  Stainless steel construction for years of operation
  •  Simple and easy installation with step-by-step illustrated instructions
  •  Integrated motor design allows water to flow around it for quiet and cool operation
  •  NEMA 4 (IP56) electronics enclosure
  •  Multiple mounting configurations allow for the unit to be installed where you need it, whether horizontal, vertical, or even upside down
  •  Built-in system protections guard the Inline unit from many common failure modes including surge protection, voltage underload, locked pump, open circuit, short circuit, and overheated controller

Specifications

Brand

Maximum Flow Rate

  • Up to 35 gpm

Maximum Incremental Pressure

  • 60 psi

Maximum Fluid Operating Temperature

  • 104° F
  • 40° C

Incoming Voltage

  • 190-260 VAC

Frequency

  • 50/60 Hz

  • Homes on municipal/city or private well systems
  • Multi-family dwellings – duplexes, triplexes, and quads
  • Increased and constant water pressure from water storage/cistern systems
  • Sprinkler and water reclamation systems
  • General pressure boosting

Documentation

Brochure

Catalog

Document

Manual
