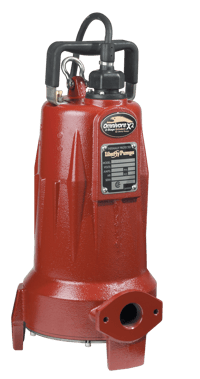

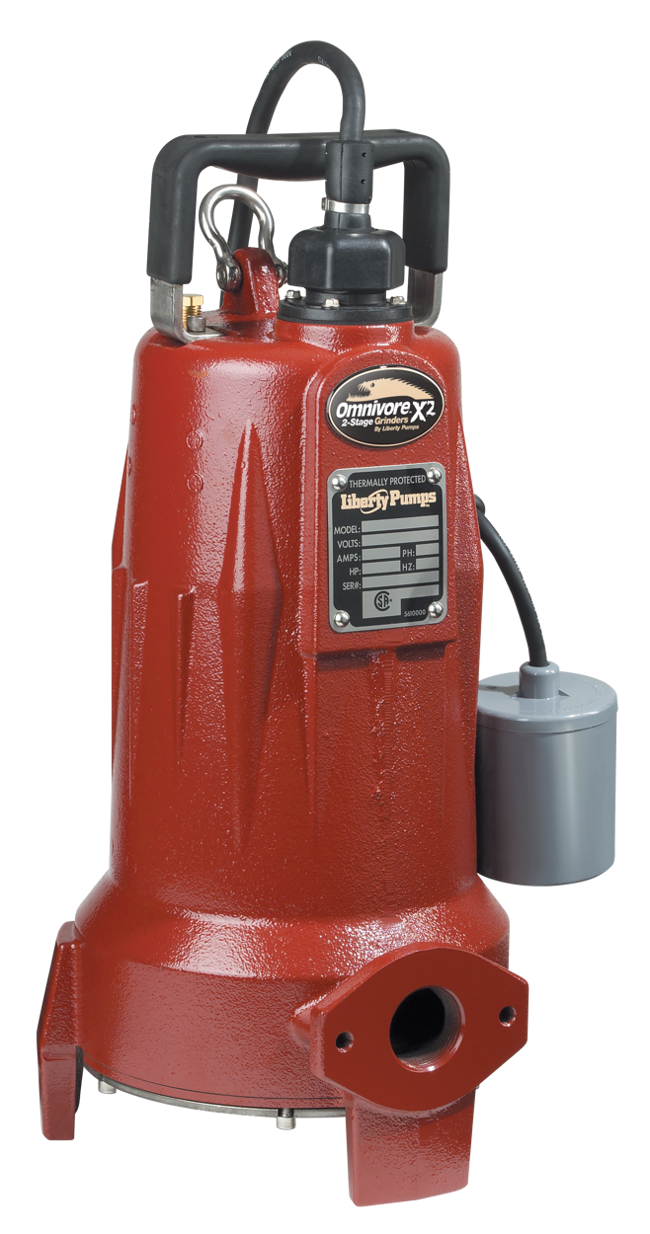

LSGX200-Series Omnivore 2-Stage High-Head Grinder

Brand: Liberty Pumps
Add Product to My Catalog

PNG - Transparent Background - LSGX200M.png
Liberty Pumps 2-stage LSGX-Series Omnivore® grinders meet the demanding needs of commercial and residential sewage applications where difficult solids handling ability is crucial.

The LSGX features patented V-Slice® Cutter Technology. This superior cutting system, made of 440 hardened stainless steel, shears rags, jeans, wipes, diapers, sanitary napkins and other debris into a fine slurry.

The 2-stage design provides higher-pressure with maximum head capabilities to 185 feet. This performance allows installation of a centrifugal grinder where only progressive cavity designs were previously used in LPS systems.

Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring pressure pumping of waste.

Other features include a one-piece cast iron volute and motor housing, Quick-connect power cord for field serviceability, and a 3 year limited warranty from last bill-of-sale.

Complete factory pre-assembled systems are available with multiple basin sizes and control panel options.
Features
  • Lower installation cost with smaller diameter pressure pipe
  • High-head capability reduces the need for costly lift stations
  • Superior pump design allows for efficient pumping over a wide range of head applications - even negative head
  • Efficient design provides lower operating cost
  • Unsurpassed reliability reduces maintenance and homeowner inconvenience

View_Details

Specifications

Brand

Discharge Size

  • 1-1/4" FNPT

Motor

  • 2 hp, Heavy-Duty
  • Oil-filled, Thermally Protected

Voltage/Amps

  • 208-230 V, 1-phase, 15 A
  • 208/230 V, 3-phase, 10.6 A
  • 440-480 V, 3-phase, 60 Hz, 5.3 A
  • 575 V, 3-phase, 4.9 A

Housing Material

  • Motor/Volute: Cast Iron Class 25

Material of Construction

  • Rotor Shaft: 400 Series Stainless Steel
  • Lift-out Clasp, Impeller & Fastener: 300 Stainless Steel
  • Seal: Upper - Unitized Graphite Impregnated Silicon Carbide
  • Seal: Lower - Viton® Double-Lip
  • Handle: Stainless Steel with Over-mold Rubber Grip
  • Cutter Plate/ Blade: 440 Series Stainless Steel Hardened to Rockwell 58C

Bearing

  • Single Row Ball Bearings

Power Cord

  • 12/3 SJOOW 300 V 25'
  • 12/4 SOOW 600 V 35'
  • 14/4 SEOOW 600 V 25'
  • Quick-connect

Certifications & Approvals

  • cCSAus
  • SSPMA

Maximum Fluid Temperature

  • 140° F (60° C) Intermittent
  • 104° F (40° C) Continuous Duty

  • Individual or Groups of Homes, Motels, Schools, Shopping Centers, Lakefront Developments and Systems Requiring Pressure Pumping of Waste
