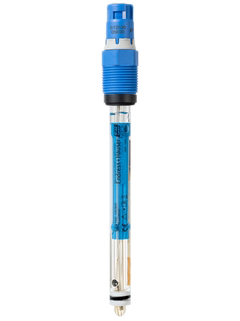

Digital Combined pH/ORP Sensor Memosens CPS16E
Brand: Endress+Hauser Group Services AGMemosens CPS16E is suitable for simultaneous pH and ORP measurement in applications with long-term stable conditions. Thanks to its pH and ORP elements, the sensor offers a better process overview and enables tighter process control.
Memosens CPS16E features Memosens 2.0 digital technology, offering extended data storage for predictive maintenance. The pH/ORP sensor resists moisture and enables lab calibration which makes the operator's daily tasks easier and maximizes process integrity.
- Long-term monitoring or limit control in processes with stable process conditions:
- Chemical processes
- Pulp and paper industry
- Power stations (e.g. flue gas cleaning)
- Incinerator plants
- Mining
- Wastewater
- Water treatment:
- Drinking water
- Cooling water
- Well water
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Features- Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services
- The additional platinum electrode enables constant monitoring of reference impedance and is a reliable indicator of the sensor quality
- Simultaneous measurement of pH, ORP and rH values (in rH mode) offers a better process overview and allows for a tighter process control
- Robust: Large PTFE ring junction and reference with ion trap prevent poisoning of the sensor
- Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi)
- Reduced operating costs: Lab calibration and fast sensor exchange on site minimize process downtime. Sensor regeneration in the laboratory extends the sensor lifetime
- Non-contact, digital signal transmission ensures reliable measurements resulting in maximum process safety
Specifications
Measuring Range
- ORP: –1,500 to 1,500 mV
- pH 0 to 14
Material of Construction
- Sensor Shaft: Glass to Suit Process
- Metal Lead: Ag/AgCl
- Open Aperture: PTFE Junction, Sterilizable
- O-ring: FKM
- Process Ccoupling: PPS Fiber-glass Reinforced
- Nameplate: Ceramic Metal Oxide
- ORP Measuring Element: Platinum
- pH Membrane Glass: Type A, B
Process Temperature
- -15° to 135° C (5° to 275° F)
Process Pressure
- 0.8 to 17 bar (11.6 to 246.5 psi) Absolute
Temperature Sensor
- NTC 30k
Certifications & Approvals
- ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO
Ingress Protection
- IP68
Connection
- Inductive, Contactless Connection Head with Memosens 2.0 Technology
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120, 225, 360 mm (4.72, 8.86, 14.17 inch)
- Chemical Industry
- Pulp & Paper Industry
- Power Plants
- Incineration Plants
- Mining
- Water & Wastewater Treatment
