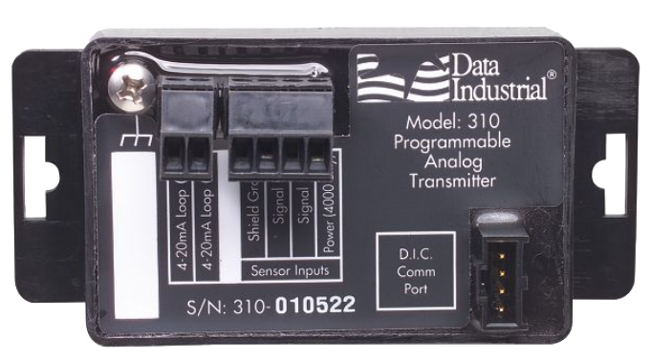

Type 310 Analog Transmitter

Brand: Badger Meter

The 310 Series from Badger Meter is a loop-powered, programmable 4-20 mA transmitter designed to accept relatively fast, unscaled raw pulses from devices like flow sensors and then transmit a linear analog signal of desired scaling and units of measure.

In addition to our standard flow sensors, the Series 310 can also accept a sine wave making it a versatile transmitter for numerous applications.

A powerful and competitive transmitter for many of today’s demanding applications.

Programmed from a computer, thereby eliminating the need to adjust potentiometers and produce precise, accurate and drift-free signals.
Features
  • Eliminates the need to adjust potentiometers and producing precise, accurate and drift-free signals
  • Saves both time and money by lowering overall maintenance times
  • With an onboard micro-controller and digital circuitry, the Series 310 is programmed from a computer
  • Has an integral filter that the user can specify
  • Compact cast epoxy body
  • Units can be calibrated at our facility or easily programmed in the field

Specifications

Brand

Power Requirements

  • Loop Input Voltage 9…35 VDC

Input Frequency

  • 0.4…10 kHz

Load Resistance

  • Max 750 Ω at 24 VDC

Output Response Time

  • Varies with filter

Temperature

  • Operating: –20…1580 °F (-29...700 °C)
  • Storage: –40…1850 °F (-40...850 °C)

Accuracy

  • ±0.04% of reading over entire span

Linearity

  • 0.1% of full scale

  • Utility Water Treatment & Distribution
