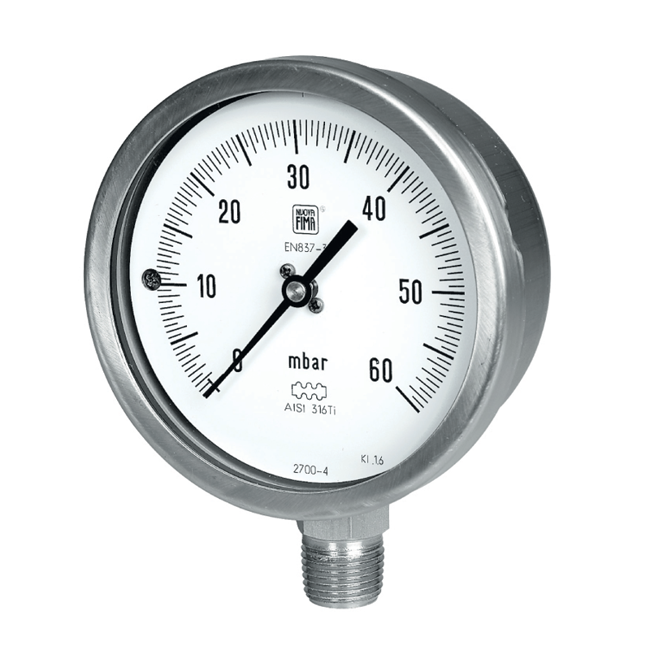

MN9/N DN100 Capsule Pressure Gauge
Brand: Nuova FimaFor measurement of low pressure and vacuum within the range -600...0 to 0...600 mbar, for use on gas and dry air.
Specifications
Brand
Accuracy Class
- 1.6 as Per EN 837-3
Ambient Temperature Range
- -13° to +149° F (-25° to +65° C)
Case
- Stainless Steel
Dial
- Aluminum, White with Black Markings
Elastic Element
- Copper Alloy Capsule
IP Protection Rating
- IP55 as Per EN 60529 / IEC 529
Movement
- Copper Alloy
Over Pressure Limit
- 25 % of Full Scale Value
Pointer
- Aluminum
Process Fluid Temperature
- +149° F (+65° C)
Ranges
- From 0 to 10 to 0 to 240 INWC (From 0 to 25 to 0 to 600 Mbar), Vacuum & Combined Vacuum/Pressure (or Equivalent Units)
Ring
- Stainless Steel, Bayonet Lock
Socket Material
- Stainless Steel
Window Material
- Tempered Glass
Working Pressure
- Maximum
Zero Adjustment
- Internal, on Dial
