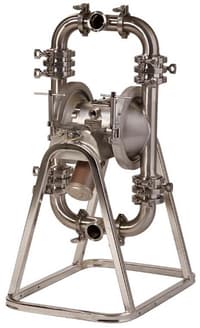

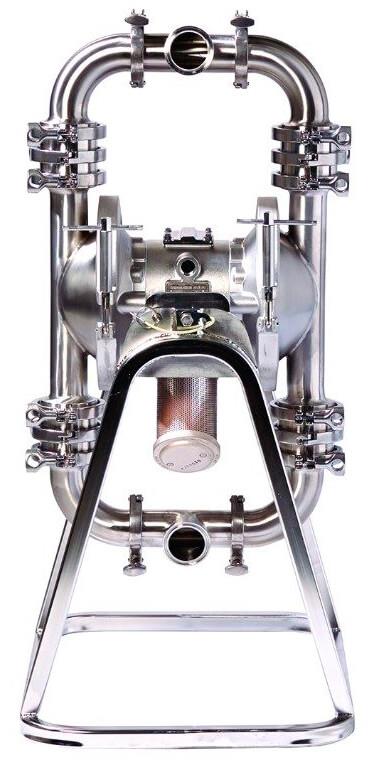

SaniForce 1590 HS Diaphragm Pump

SaniForce 1590 HS Diaphragm Pump

Brand: Graco, Inc
Add Product to My Catalog

SaniForce 1590 HS Diaphragm Pump
Ideal for applications that benefit from the convenience of a quick knockdown design, Graco’s 1590 HS sanitary pumps can be disassembled in five minutes or less.

Available in ball and flapper designs, with 1.5 inch, 2 inch, 3 inch and 4 inch tri-clamp connections.
Features
  • Pumps up to 90 gpm (341 lpm).
  • Pump rotates 360º for easy draining.
  • Easy to clean, quick knockdown, rotating design.
  • Features our lube free, non-sticking air valve.
  • Transfer product from a variety of containers to smaller receptacles - up to 15,000 cps.
  • Suitable to pump products such as: fruit filling, spaghetti sauce, muffin and cake batter, oils and lotions. Air Valve:
  • Fewer moving parts.
  • Three-way pilot valve for true non-sticking operation.
  • Externally serviceable for quick, inexpensive repairs.
  • Elimination of o-rings and spool valve prevents problems associated with competitive pumps. PTFE/EPDM Diaphragms:
  • Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco's PTFE/EPDM diaphragms so there's no place to harbor bacteria.
  • Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side.
  • Longer diaphragm life in abrasive applications that still require PTFE.
  • Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150.

Specifications

Brand

3A Approved EPDM

  • 135° C

Air Consumption at 70 psi, 60 GPM

  • 1.4 m³/minute

Air Inlet Size

  • 1/2” NPT Female

Air Pressure Operating Range

  • 1.4-8 bar, 0.14-0.8 MPa

All Models

  • 44 kg

Gallons (Liters) Per Cycle

  • 2.0 L

Maximum Air Consumption

  • 3.5 m³/minute

Maximum Fluid Working Pressure

  • 8 bar, 0.8 MPa

Maximum Free Flow Delivery

  • 378 Lpm

Maximum Noise Level at 100 psi (7 bar, 0.7 MPa), Full Flow

  • 90 dBA

Maximum Pump Speed

  • 200 cpm

Maximum Size Pumpable Solids

  • 15.9 mm

Maximum Suction Lift

  • 8.5 m Wet, 4.6 m Dry

Noise Level at 70 psi (4.8 bar, 0.48 MPa), 50 cpm

  • 85 dBA

Non-Wetted External Parts

  • 300 Series Stainless Steel, Polyester (Labels), LDPE Foam (Gasket)

PTFE

  • 104° C

Santoprene

  • 82° C

Sound Power Level

  • 103 dBA

Wetted Materials Depending on Model

  • 3-A Approved EPDM, PTFE, Santoprene

Wetted Materials on All Models

  • 316 Stainless Steel, 3-A Approved EPDM, PTFE
