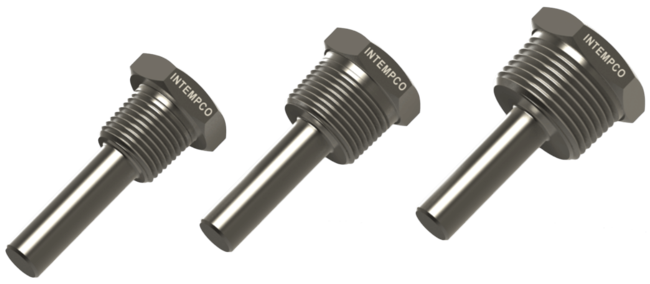

TW104 Standard Threaded Limited Space Thermowell
Brand: Intempco Controls, IncThese short and compact Barstock models are machined from one solid piece of Hexagon or Round Bar.
They offer the highest pressure ratings and strength due to their one piece construction.
Threaded process for screwing into a female Threaded process connection such as a threadolet, adaptor or directly to a tapped access port.
Features- Compact low profile hex section for limited space installations
- Machined from solid barstock
- 1/2", 3/4" and 1" NPT connections are standard
- BSPP, BSPT standards available
- Standard bores for 6 mm, 0.250" diameter probes
- CRN available on all models
Specifications
Brand
Approvals & Certifications
- CRN
- Internal Hydrostatic Pressure Test
- Liquid Dye Penetration Testing
- Well Material Certificate
- X-Ray Test
Bore Size
- 0.245” (6.2 mm) for 6 mm Diameter Probe
- 0.260” (6.6 mm) Standard for 1/4” Diameter Probe
Insertion 'U' Length
- 0.1 to 12” (2.54 to 304.8 mm)
Instrument Connection
- 1/2” BSPP Female
- 1/2” NPS Female
- 1/2” NPT Female
- 1/4” BSPP Female
- 1/4” NPS Female
- 1/4” NPT Female
- 3/8” BSPP Female
- 3/8” NPS Female
- 3/8” NPT Female
- G 1/2” Female
- G 1/4” Female
- G 3/8” Female
Materials of Construction
- 304 Stainless Steel
- 304L Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
- Hastelloy C-276
- Inconel 600
NPT Connection
- 1” NPT Male
- 1/2” NPT Male
- 3/4” NPT Male
Plug Material
- Stainless Steel Plug with Chain
Sensor, Probe Diameter
- Probe: 1/4” (6.35 mm)
- Probe: 6 mm
Special Cleaning & Packaging
- Cleaned for Oxygen Service
