NBK-19 Bypass Level Indicator
Brand: KOBOLD Instruments, IncThe KOBOLD bypass level indicator model NBK-19 is based on the simple function principle of cable and deflection pulley.

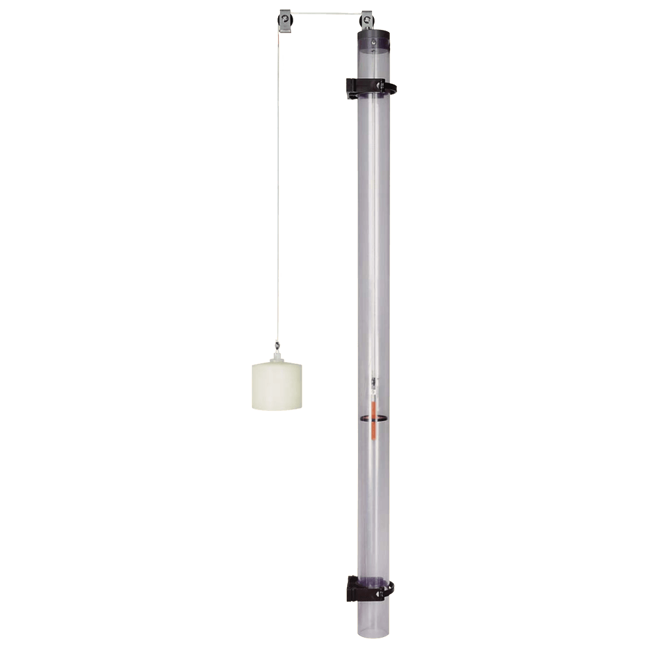

The tank float, made of PPH or stainless steel, is moved up and down by the medium depending on the level in the tank. This tank float has a counter-float (counterweight), which moves correspondingly in a transparent PVC tube in dependence on the level.
The floats are connected to one another by means of a cable over 2 deflection pulleys. The magnetic counter-float has a ring marking for reading the scale on the bypass PVC tube.
Specifications
Brand
Accuracy
- ± 0.039” (± 1 mm)
Ambient Temperature Range
- 60° C (140° F) - Max.
Cable Length
- 9.84 feet (3 metres)
Cable Material
- 304L Stainless Steel
- Polypropylene
- PVC
Consumption
- < 5 W (Without Load)
Electrical Contacts
- Bistable Changeover Contact
- Reed Contact
Electrical Rating
- 230 Vac/dc, 1 A, 60 W/VA
Enclosure, Body Material
- Plastic
Environmental Protection
- IP54
- IP65
- IP67
Hysteresis
- 0.59” (15 mm)
Length
- 0.6 to 15.7 feet (0.2 to 4.8 metres) - Measuring Length
Load
- 500 ohms, Max.
Materials of Construction
- 303 Stainless Steel - Deflector Pulleys
- 304L Stainless Steel - Float, Deflector Pulleys (Bearing Block)
- Polyamide (PA6) - Deflector Pulleys
- Polypropylene - Fastening Strap, Roller Display
- Polypropylene Homopolymer - Float
- PVC - Bypass Tube
Maximum Current
- 0.1 A - Measuring Current
Maximum Voltage
- 24 Vdc - Measuring Circuit
Operating Temperature
- 60° C (142° F) - Max.
Output
- 4-20 mA
Resistance
- 5 kiloohms Approximately - Total Resistance
Resolution
- 0.78” (20 mm)
Scale Panel Material
- Polyester
Sensor, Probe Connection
- 2-Wire
- 4-Wire
Supply Voltage
- 16-32 Vdc
- 24 Vdc At, Max.
