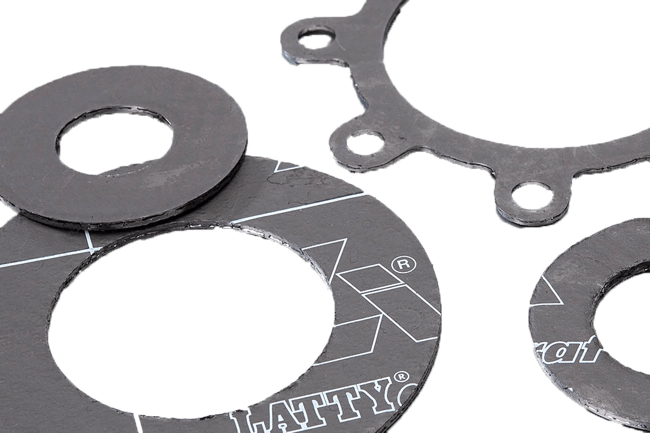

LATTYgraf EFA G2F Graphite Gasket for High-Temperature, High-Pressure Applications with Nonstick Coating

Brand: Latty International S.A.

LATTYgraf EFA G2F, structurally identical to LATTYgraf EFA, adds a special graphite coating on both faces, which makes disassembling operations extremely fast. Graphite gasket for high-temperature, high-pressure applications with nonstick coating.

Specifications

Pressure

  • 0 to 650 bar
  • 0 to 65 MPa
  • 0 to 9427 psi

Temperature

  • -200° to 650° C
  • -328° to 1202° F

pH

  • 0 - 14

Types of Fluids

  • Compatible with All Fluids, Except Strong Oxidants

Material

  • Pipework Flange Gaskets
  • Casing Cover Gaskets for Valves
  • Manhole Gaskets

Composition

  • Expanded Graphite

  • Chemical and Petrochemical Industries
  • Energy
  • All Industrial Applications in General
