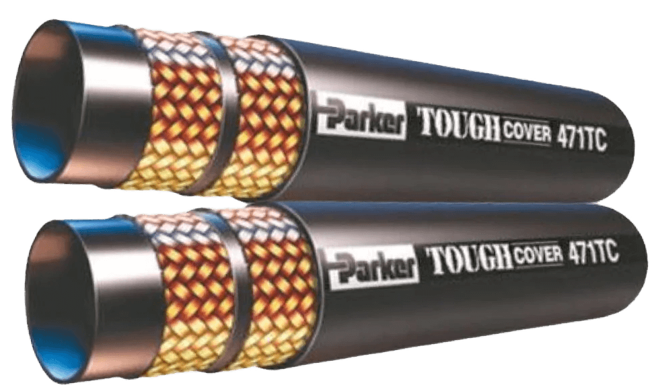

Hydraulic Industry Standard Hose 4250-5000 psi - 471TC Twin Tough Hose
Brand: Parker HannifinParker’s 471TC Twin Tough hose working pressure of 4250-5000 PSI, was designed to eliminate the labor and material costs required to manually bundle two separate hoses.
This saves valuable time in the field. The 471TC Twin Tough hose is reinforced with two steel braids for durability. Sizes are available in 3/8” or ½” diameters to meet your specific needs.
Features- Two hoses bundled with one cover to save labor and material costs
- ToughCover to prevent abrasion
- Half SAE bend radius for ease of installation and low force to flex
- 2-braided compact construction
Specifications
Brand
Applications
- Construction, Hydraulic, Industrial, & Material Handling
Compatible Fittings
- 43 Series
Fluid Type
- Petroleum-based Hydraulic Fluids & Lubricating Oils
Hose Cover Material
- Synthetic Rubber Abrasion Resistant, MSHA Accepted
Hose Cover Type
- ToughCover
Hose I.D. (Size)
- -6 to -8
Hose Inner Tube Material
- Synthetic Rubber
Industry Standards
- ISO 11237 Typical 2SC / SAE J1942 / EN 857 Typical 2SC
Material - Hose Reinforcement
- Two Braids Steel Wire
Maximum Working Pressure (bar)
- Up to 350
Maximum Working Pressure (Mpa)
- Up to 35,0
Maximum Working Pressure (psi)
- Up to 5000
Maximum Working Temperature (°C)
- 100° C
Maximum Working Temperature (°F)
- 212° F
Media
- Hydraulic Fluids, Lubricants
Minimum Bend Radius (mm)
- 65 - 90
Minimum Working Temperature (°C)
- -40° C
Minimum Working Temperature (°F)
- -40° F
- Petroleum base hydraulic fluids and lubricating oils
