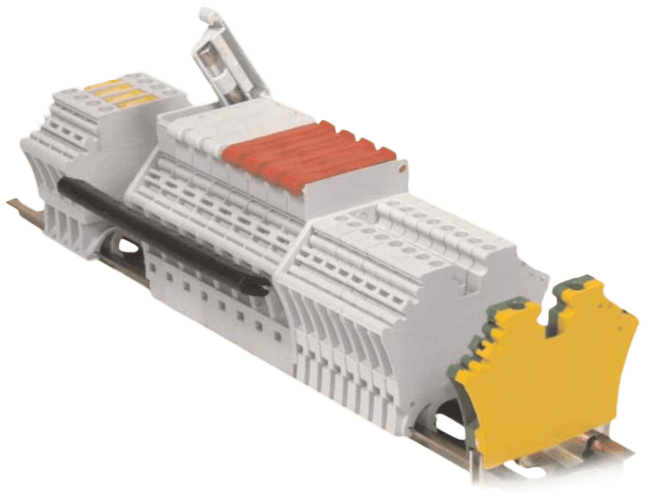

BC Series Terminal Block

Brand: Emphatec

Emphatec has partnered with Unibloc to offer a small selection of terminal blocks. These are intended as accessories to Emphatec’s DC power supplies but are also suited for general-purpose use as well as Class 1 Division 2 applications.

The BC2.5/4 is a 5 mm wide feedthrough terminal while the BC4S is a 6 mm wide lever disconnect terminal. The BC5F is a 5 x 20 mm fuse holder and is 8 mm wide. All three terminals accept Weidmuller’s Dekafix and Multicard marking tags.

Accessories such as partitions and jumper combs are available. The combifoot design allows a single terminal to be used on any of the commonly available DIN rails – 15 mm, 32 mm, 35 x 7.5 mm and 35 x 15 mm.
Features
  • Feedthrough and disconnect terminals and a fuse holder

  • Combifoot for mounting on 15 mm, 32 mm and 35 mm DIN rails

  • Accepts Weidmuller Multicard marking tags

  • Complete offering of accessories

  • Specifications

    Brand

    Approvals & Certifications

    • CSA

    Electrical Connectors

    • 20 to 10 AWG (0.5 to 6 mm²)
    • 20 to 12 AWG (0.5 to 4 mm²)
    • 20 to 8 AWG

    Electrical Rating

    • 300 V, 10 A
    • 600 V, 20 A

    Enclosure, Body Material

    • BASF Ultramid
    • LATI Latamid

    Materials of Construction

    • Current bar & Disconnect: Tin-Plated Copper

    Screw Material

    • Steel

    Torque

    • 0.6 Nm (5.3 In/Lbs)
