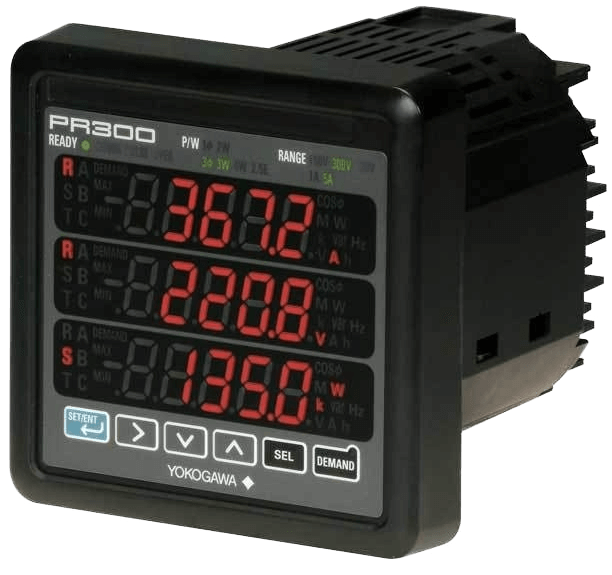

PR300 Power & Energy Meter
Brand: Yokogawa Electric Corporation
PR300 is a panel-mounted meter designed to meet two user needs: a power facility meter and a meter for monitoring energy consumption.
Features- Large Triple Display and Multimeter Function
- Wide Choice of Measurement Items
- The Demand Alarm and Network Access Make Your Power Monitoring Even More Efficient.
- Universal Design
Specifications
Accuracy
- ± 0.25 % of Full Scale - Voltage, Current
- ± 0.5 % - Active Energy, Optional Active Energy
- ± 0.5 % of Full Scale - Active Power
Approvals & Certifications
- CE
- cULus
- UL
Communication
- Ethernet Communication
- RS-485 Communication (Modbus / PC Link)
Consumption
- 10 VA - Max.
- 5 W - Max.
Display
- LED Display
Indication
- Digital
Input
- 1 A AC - Input Current
- 150 V - Universal Input Voltage
- 1-Digital Input
- 300 V - Universal Input Voltage
- 5 A AC - Input Current
- 600 V - Universal Input Voltage
Mounting
- Panel Mount
Output
- 1 Analog Output
- 1 Analog Output, 1 Pulse Output
- 1 Pulse Output
- 4-20 mA DC
Output Format
- 1 Demand Alarm Output
Power Supply
- 100-240 Vac ± 10 % (50/60 Hz)
- 130-300 Vdc ± 15 %
Wiring
- Universal Three-Phase 3-Wire System - Phase & Wire System
- Universal Three-Phase 4-Wire System - Phase & Wire System
