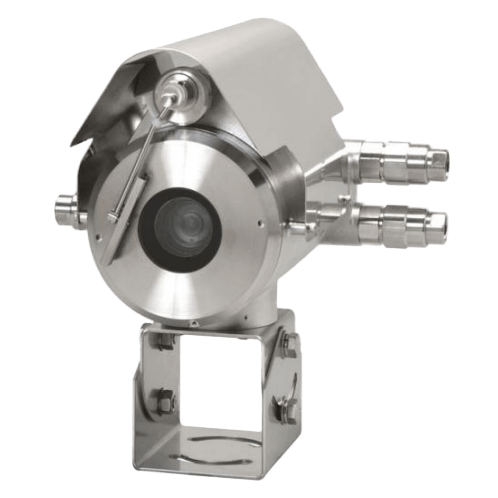

Yokogawa CCD Color Camera, FC34E/FC34U

FC34E/FC34U CCD Color Camera

Brand: Yokogawa Electric Corporation
Add Product to My Catalog

FC34 fixed angle zoom type CCD color camera is compatible with a wide variety of applications, such as monitoring under sever environmental conditions and diagnosis of facilities.

Stainless chassis with electrolytic polishing is well suited for good corrosion-resistance, and also is compact and lightweight.

Heater and defroster is standard equipment that can be used for a wide range of temperature -40° to 60° C (-40° to 140° F).

Wiper and hood can be selected as option. In control method, RS-485 connection is available.

It can easy connect to a web camera server as a controller enabling to use various digital functions of video management system(s).

View_Details

Specifications

Brand

Ambient Temperature Range

  • -40° to 60° C (-40° to 140° F)

Approvals & Certifications

  • ATEX Certificated: CML 14-ATEX-1052X Issue 0 (EN 60079-0: 2012, EN 60079-1: 2007)
  • CE
  • DNV
  • Ex - II 2 G, Ex d IIC T5 Gb at Temperature: -40° to 60° C (-40° to 140° F)
  • IEC
  • TIIS

BSP Connection

  • G 1/2” Female

Cable Type

  • Twisted Pair Cable

Communication

  • Full Duplex - Asynchronous Communications
  • RS-485

Consumption

  • 30 VA - Power Consumption

Diameter

  • 0.307” (7.8 mm) Outer Diameter, JIS C3306 - Power Cable
  • 0.314” (8 mm) Outer Diameter for RS-485 - Control Cable
  • 0.39” (10 mm) 2 Outer Diameter, JIS C3312 - Power Cable

Distance

  • 0 to 300 metres - Video Transmission Distance
  • 0 to 3937 feet (0 to 1,200 metres) - Control Signal Transmission Distance

Electrical Connectors

  • (1.25 mm²) 3-Conductor Cable - Power Cable
  • 0.5 mm² 2-Pair Twisted Pair Shielded Cable - Control Cable
  • G 1/2” Female - Cable Gland
  • M20 x 1.5 Female - Cable Gland
  • Shielded Cable

Enclosure Finish

  • Electro-Polishing

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Explosion-proof Class: Ex d IIC T5
  • Flameproof
  • IP66

Lens

  • 3.3 to 119 mm / F1.4-4.2 (with Auto Focus)

Operating Temperature

  • -40° to 60° C (-40° to 140° F)

Output Load

  • 75 ohms at 1 Vpp - Video Signal Output

Output Noise

  • 50 dB - Video Signal to Noise

Power Supply

  • 100-240 Vac at 50/60 Hz - Allowable Power Supply

Resolution

  • 650TV Line - Horizontal Resolution
  • 976 (H) x 494 (V) NTSC - Effective Pixels
  • 976 (H) x 582 (V) PAL - Effective Pixels

Rotation

  • Approximately 1.7° (Telephoto) - Horizontal Field of Vision
  • Approximately 60.2° (Wide Angle) - Horizontal Field of Vision

Sensitivity

  • 0.0025 Ix Black & White Typical - High Sensitivity (Sense Up: ON)
  • 0.03 Ix Color Typical - High Sensitivity (Sense Up: ON)
  • 0.04 to 0.5 Ix Color Typical - Normal Sensitivity (Sense Up: OFF)

Temperature Range

  • -40° to 60° C (-40° to 140° F)
