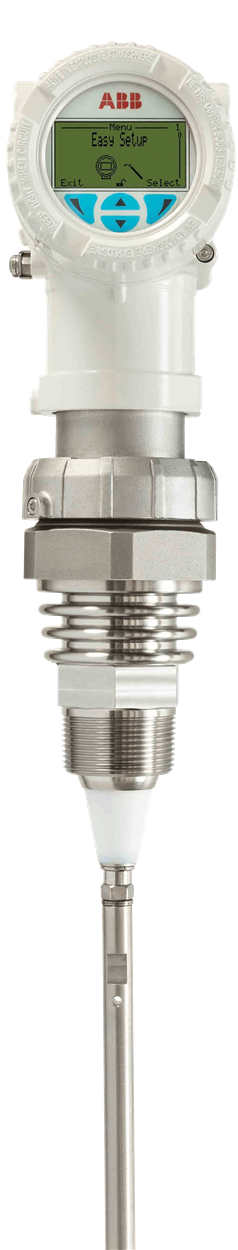

LWT300 Series Guided Wave Radar

Brand: ABB Group
Add Product to My Catalog

Unlike traditional guided-wave radars that use device parameters requiring multiple adjustments, the LWT300 series of instruments does it for you.

The instrument uses LevelExpert™, a built-in intelligence to differentiate between the actual level and other false signals.

LevelExpert concentrates 20 years of industrial level measurement experience into an intelligent instrument made to accurately detect levels, even in the most demanding conditions.

Forget about baseline mapping and echo selection; LevelExpert knows how to find the right level through the clutter. The expert is now inside your guided-wave radar.

LWT300 series instruments cover a wide range of applications. They can meet your needs for applications up to 200° C (392° F) and 200 bars (2,900 psi).
Features
  • LevelExpert software for easy configuration, reliable surface detection and easy troubleshooting
  • 2-wire powered, and HART 7 communication model, with SIL 2 (no redundancy), SIL 3 (redundant configuration)
  • Modbus communication model
  • Certified for potentially explosive atmospheres

View_Details

Specifications

Brand

Accuracy

  • 2 mm or 0.03 %

Resolution

  • 1 mm

Temperature Drift

  • 0.001 %/°C

Range

  • 60 metres

Update Rate

  • 5 Hz

Temperature Ranges

  • Storage: -40° to 85° C
  • Process: -50° to 204° C
  • Ambient Operating: -40° to 80° C

Process Pressure

  • 83 bar at 204° C
  • 207 bar at 38° C

Dielectric Constant

  • 1.4 Min.

Process Viscosity

  • Single Probe: 10,000 cp
  • Coaxial Probe: 500 cp

Power Suply

  • 15.5 to 42 Vdc

Power Consumption

  • 325 mW @ 15.5 V, 21 mA
  • 56 mW @ 15.5 V, 3.6 mA

Line Resistance

  • 1740 Ω

Enclosure Material

  • 316L Stainless Steel
  • Powder-Coated Aluminum

Protection Class

  • NEMA 6P
  • IP68

Process Connections

  • Flanged: 1-1/2” to 8”
  • Threaded: 3/4” & 1-1/2”

Wetted Material

  • C-276 Alloy
  • Super Duplex 2507 Stainless Steel
  • Duplex 2205 Stainless Steel
  • 304L Stainless Steel
  • 316L Stainless Steel

Documentation

Data Sheets

Product Manuals

Certifications & Approvals
