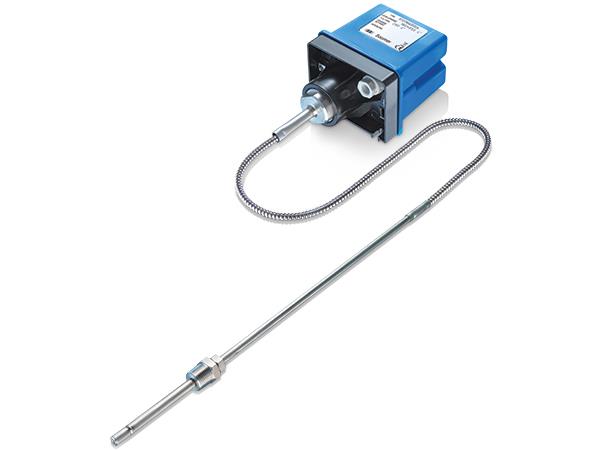

RT2N Compact Temperature Switch
Brand: Bourdon
Features
- Excellent repeatability
- Dead band adjustment for regulation
- Fix dead band for control
- Resistant to accidental overtemperature
- Light weight
Specifications
Brand
Adjustment
- Internal Adjustment Possible for Set Point & Deadband
Ambient Temperature Range
- -30° to +70° C
Approvals & Certifications
- CE
- Low Voltage Directive (LVD) 2014/35/UE
Body
- Black Painted, Zamak
Bulb
- Stainless Steel 1.4404, AISI 316L
Case Material
- Blue Painted, Zamak
Electrical Connectors
- Via Internal Terminal Block with Cable Gland for Ø 5.5 to 8.5 mm
Ground Connection
- Via Internal Terminal Block
IP Protection Rating
- IP66
Maximum Temperature Range
- +160° to +250° C
Media Temperature
- -46° to +250° C
Minimum Temperature Range
- -46° to +0° C
Mounting
- Wall Mounting, 2 x M5 Screws
Process Connection Material
- Stainless Steel 1.4404, AISI 316L
Repeatability
- ± 1 % of Full Scale
Scale
- Internal Graduated Scale
Storage Temperature
- -40° to +70° C
Temperature Switch
- 960 G + Transmission
