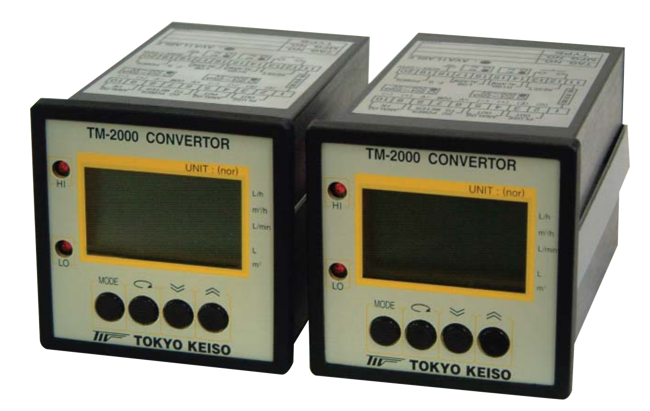

TM-2000 Mini Converter Unit
Brand: Tokyo Keiso Co, LtdTM-2000 MINI CONVERTOR UNIT is power supply and indication unit which is used in combination with Tokyo Keiso’s TF-900, TF- 1000, TF-5000, TF-6000 and (H-) EP-TF-5300 series MASS FLOWMETERS. All necessary functions of power supply to the detectors and scaled flow indication is provided in DIN 72 mm compact housing. Additionally, either totalization (with scaled pulse output) of flow or high and low alarm is available for total gas volume management or stable gases supply applications. Also, Analog re-output function (DC4 to 20mA or DC0 to 5 V) is provided as standard for further connection to recorders and/or process control loop.
Features- Compact design of DIN 72 x 72
- Necessary functions for flow measurement and management are provided as standard
- All setting and control is possible from keys on front panel
Specifications
Brand
Enclosure, Body Material
- ABS Resin
Environmental Protection
- IP20
Input Signal
- 0-5 Vdc
- 4-20 mA DC
Output
- 0-5 Vdc
- 4-20 mA DC
