Features

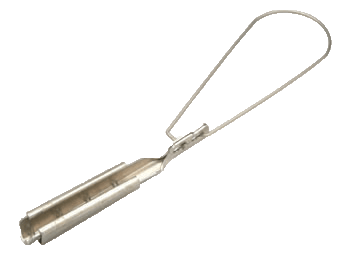

  • A service-drop, sliding type dead end clamp for use on solid and stranded aluminum or ACSR conductors
  • Saves conductor, drop wire may be cut to exact length
  • Adjustments in drop wire sag are easily made
  • Solid stainless steel bail

1 - 3 of 3 Part Numbers
WDC-10S
WDC-10S
Aluminum Service Wedge Clamp #4 to 1/0 ACSR ; #2 to 2/0 AAC ; #4 to 1/0 AAAC , 6.88" x 12.88" x 3.69" x 0.16" x 1" , Blue
WDC-2S
WDC-2S
Aluminum Service Wedge Clamp #6 to #2 ACSR ; #6 to #1 AAC ; #6 to #2 AAAC , 4.50" x 10.75" x 3" x 0.13" x 1" , Orange
WDC-40S
WDC-40S
Aluminum Service Wedge Clamp 2/0 to 4/0 ACSR, AAC & AAAC , 7.22" x 16.67" x 3.76" x 0.11" x 1" , Red
1 - 3 of 3 Part Numbers

Specifications

Brand

ACSR

  • 4 - 1/0
  • 6 - 2
  • 2/0 - 4/0

AAC

  • 2 - 2/0
  • 6 - 1
  • 2/0 - 4/0

AAAC

  • 4 - 1/0
  • 6 - 2
  • 2/0 - 4/0

Diameter

  • 0.25” - 0.41”
  • 0.16” - 0.33”
  • 0.41 - 0.56

F x L x M x O x R

  • 6.88” x 12.88” x 3.69” x 0.16” x 1”
  • 4.50” x 10.75” x 3” x 0.13” x 1”
  • 7.22” x 16.67” x 3.76” x 0.11” x 1”

Color Code

  • Blue
  • Orange
  • Red
