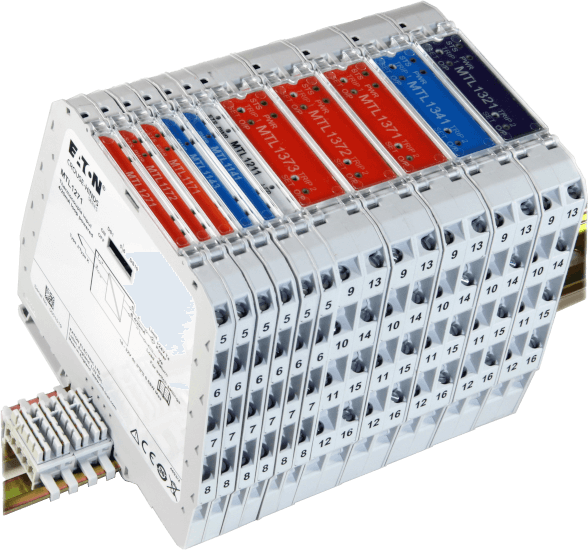

MTL1000 Range Signal Conditioning
Brand: MTL InstrumentsThe MTL1000 range of signal conditioning isolators and accessories are designed to help protect field instruments and control systems to provide safe, reliable and high-quality process communications.
This cost-effective solution offers significant savings with its embedded DIN-rail mounted power-bus and compact design.
The optional MTL1991 power-bus feed and alarm module offers added power security with the application of dual power feeds with individual supply monitoring.
Our new range of MTL13xx trip amplifiers now provide signal conditioning and 2 trip alarms for voltage, current, RTD, thermocouple and potentiometer inputs.
Features- Embedded Power-bus Reduces Power Wiring up to 90%
- High Packing Density with 6.2mm Wide Slimline Modules
- Trip Amplifiers with 2 User Set High/Low Alarm Relays
- Status Indication and Alarm Relay for Quick Maintenance
- Improved Signal Quality Enhances Plant Performance
Specifications
Brand
Terminals
- Accept conductors of up to 2.5 mm*2 stranded or single-core
Power Supply Voltage
- 18 V to 32 Vdc SELV
Isolation
- 250 Vac and dc functional isolation between power, field and system circuits
- Tested to 1100 Vac
Location of Units
- Safe Area
Mounting
- T-section 35 mm DIN Rail (7.5 mm or 15 mm) to EN 50022
Ambient Temperature Limits
- -20° to +60° C (-6° to +140° F) operating
- -40° to +80° C (-40° to +176° F) storage
Humidity
- 5 to 95 % RH
Weight
- 120 g
EMC
- EN 61326 and NE21
- For 20 mS power interruption compliance a suitable power supply must be used.
