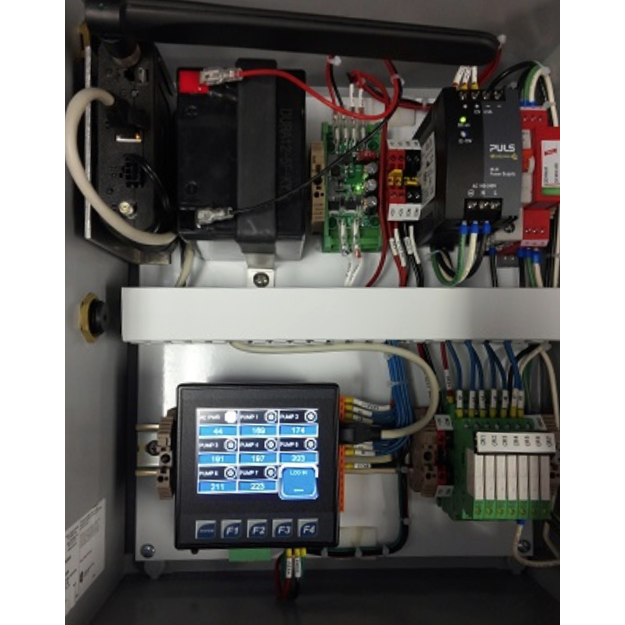

PSC Lift Station Meter

Brand: Process Solutions

We have 3 models of lift station meter packages to offer to fit your budget.  Wireless Profiler, Wireless Non-Profiler, and Non-Wireless Non-Profiler.

Each operates by monitoring the on/off cycles of the pump.  This information, along with basic pump information (gallons per minute, etc), can provide an accurate flow profile of your lift station.  Additionally, the PSC Lift Station Meter can monitor your flow and level indicators to provide an all over picture of your lift station’s health.

This monitoring device is portable, and can be moved from station to station which allows a utility to determine the flow profiles of all lift stations in their responsibility.  The City of Houston is a satisfied customer of the PSC Lift Station Meter.

Wireless Profiler & Non-Profiler Features
  • Water proof NEMA 4X Hoffman enclosure with cutouts
  • 3G/4G cellular modem
  • WiFi hotspot capability
  • 100 to 480 VAC 50/60hz input power flexibility
  • 12 VDC battery backup with flexible capacity
  • AC input power failure reporting capability
  • 7 pump status monitoring inputs
  • FTP accessible via wireless or Ethernet cable CSV log file data logs that contain pump on/off times
  • Removable 2GB micro SD card for data logs
  • PC program available for a final report generation
  • Touch screen for viewing current status of pumps
  • Web interface capability for remote monitoring
  • Email alerting capability
  • Modbus over Ethernet or serial RS232/485 capable for interfacing to other devices
  • 6 relay outputs available
  • 4 analog inputs available for 4-20mA or 0 to 10VDC measurements

Non-Wireless Non-Profiler Features
  • Water proof NEMA 4X Hoffman enclosure with cutouts
  • 100 to 480VAC 50/60hz input power flexibility
  • 12VDC battery backup with flexible capacity option available
  • AC input power failure reporting capability option available
  • 7 pump status monitoring inputs
  • Removable 2GB micro SD card for CSV log file data logs that contain pump on/off times
  • PC program available for a final report generation
  • 6 relay outputs available
  • 4 analog inputs available for 4-20mA or 0 to 10VDC measurements

Specifications

Communication

  • Modbus over Ethernet - Wireless Profiler & Non-Profiler
  • RS-232, RS-485 - Wireless Profiler & Non-Profiler

Display

  • Touch Screen for Viewing Current Status of Pumps

Environmental Protection

  • NEMA 4X

Input

  • 0-10 Vdc
  • 4-20 mA

Input Power

  • 100-480 Vac at 50/60 Hz

Power Requirement

  • 12 Vdc Battery Backup with Flexible Capacity
