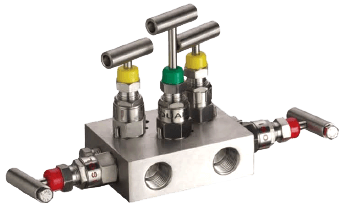

Features
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female, Flange
  • Standard Features:
    • PTFE Packing
    • Max Pressure 6000 psi @ +100°F (+38°C)
    • Non-Rotating trim provides bubble tight shut-off
  • Construction Material:
    • Body: Stainless Steel
    • Trim: Stainless Steel

1 - 6 of 6 Part Numbers
M-5-L-DM-08F-08F-P
M-5-L-DM-08F-08F-P
  • Valve Type - Bar Type
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Direct Mount
  • Inlet (Process) Connection Size - 1/2” NPT Female
  • Outlet (Instrument) Connection Size - 1/2” NPT Female
  • Drain / Vent - 1/4” NPT Female
M-5-L-DM-08F-FLG-P
M-5-L-DM-08F-FLG-P
  • Valve Type - Bar Type
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Direct Mount
  • Inlet (Process) Connection Size - 1/2” NPT Female
  • Outlet (Instrument) Connection Size - Flange
  • Drain / Vent - 1/4” NPT Female
M-5-L-RM-08F-08F-P
M-5-L-RM-08F-08F-P
  • Valve Type - Wafer Type
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Remote Mount
  • Inlet (Process) Connection Size - 1/2” NPT Female
  • Outlet (Instrument) Connection Size - 1/2” NPT Female
  • Drain / Vent - 1/4” NPT Female
M-5C-L-RM-08F-08F-P
M-5C-L-RM-08F-08F-P
  • Valve Type - Horizontal
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Remote Mount
  • Inlet (Process) Connection Size - 1/2” NPT Female
  • Outlet (Instrument) Connection Size - 1/2” NPT Female
  • Drain / Vent - 1/4” NPT Female
M-5T-L-DM-08F-08F-P
M-5T-L-DM-08F-08F-P
  • Valve Type - T Type
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Direct Mount
  • Inlet (Process) Connection Size - 1/2” NPT Female
  • Outlet (Instrument) Connection Size - 1/2” NPT Female
  • Drain / Vent - 1/4” NPT Female
M-5T-L-DM-08F-FLG-P
M-5T-L-DM-08F-FLG-P
  • Valve Type - T Type
  • Enclosure Material - 316L Stainless Steel
  • Mounting - Direct Mount
  • Inlet (Process) Connection Size - 1/2” NPT Female
  • Outlet (Instrument) Connection Size - Flange
  • Drain / Vent - 1/4” NPT Female
1 - 6 of 6 Part Numbers

Specifications

Enclosure, Body Material

  • 316L Stainless Steel

Handle Assembly Material

  • 304 Stainless Steel

NACE & NIST

  • NACE

NPT Inlet

  • 1/2” NPT Female

NPT Outlet

  • 1/2” NPT Female

Pressure Rating

  • psig: 6,000 at 38° C (100° F)

Seal Retainer

  • PTFE

Valves

  • Five
