MTS Sensors Position Sensor, C-Series OEM-Sensor PWM

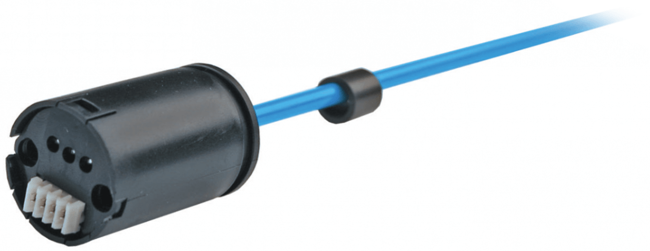

C-Series OEM-Sensor PWM Position Sensor

Brand: Temposonics an Amphenol Company
Add Product to My Catalog

The OEM sensor is designed as a built-in product.

The sensor is a function of the customer requirements according to the application, and considering the environment, environmental influences, including EMI protection effects.
Features
  • Contactless measurement – entirely wear-free
  • Low weight – ideal for small portable OEM products
  • Cost-efficient
  • Space-saving – the smallest sensor in the market offers all advantages of magnetostrictive measurement technology
  • Low energy requirement – can be operated from 5 Vdc supply
  • No wear – no need for periodic re-adjustment
  • Available with various position magnets

Specifications

Brand

Approvals & Certifications

  • EMC: Emission EN 61000-6-3 (CISPR 16-2-3, CIPSR 16-2-1), Immunity EN 61000-6-2 (EN 61000-4-2, 3, 4, 5, 6, 8)

Approvals & Certifications

  • ISO 9001

Consumption

  • Maximum

Electrical Connectors

  • Terminal Connection

Electrical Protection

  • Overvoltage Protection - CS: up to 19 Vdc Short Term, CM: up to 29 Vdc Short Term
  • Polarity Protection Vdc - GND

Enclosure, Body Material

  • POM

Environmental Protection

  • IP30

Hysteresis

  • ± 25 µm

Length

  • Stroke Length: 2.8 to 9.8” (72 to 250 mm)

Linearity

  • ± 0.15 mm by Means of Magnet 401842 between 5 % & 95 % of Stroke Length

Materials of Construction

  • Protective Pipe: Nylon Blue

Mounting

  • Screw Mount

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Output Load

  • PWM: ≥ 400 W

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • ± 25 µm

Shock

  • IEC 68-2-27 10 G, 11 milliseconds Single Hit at 1,000 Shocks Per Axis

Storage Temperature

  • -20° to 85° C (-4° to 185° F)

Supply Voltage

  • CM: 12 Vdc (Tolerance Range 9-15 Vdc)
  • CS: 5 Vdc (Tolerance Range 4.75-5.5 Vdc)

Temperature Effect

  • ± 0.005 %/°C

Tolerance

  • Zero Tolerance: ± 1 mm

Update Time

  • 2.6 kHz (0.385 milliseconds)

Vibration

  • IEC 60068-2-6 10 G (10 to 2,000 Hz) Sinus (Resonance Frequencies Excluded)

  • Immunodiagnostics
