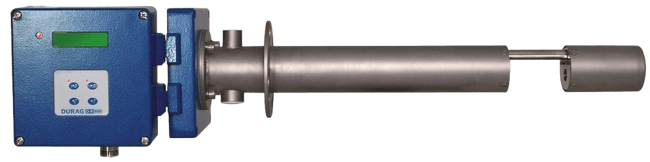

D-R 800 Scattered Light Dust Monitor
Brand: Durag
Scattered light dust monitor to measure small to medium dust emissions.
The D-R 800 works according to the principle of forward scattering.
The concentrated and modulated light of a laser diode penetrates the measuring volume.
The forward-scattered light largely reflected from dust particles is measured and assessed.
Features- Easy installation on one side of the duct
- Easy installation, no alignment needed
- Long lifetime as there are no moving parts inside the duct
- Probe with corrosion resistant nano-tech coating
- Automatic zero and reference point check
- Automatic contamination control and correction.
Specifications
Brand
Accuracy
- Detection Limit: < 0.5 % of Measuring Range
Ambient Temperature Range
- -20° to 50° C (-4° to 122° F)
Applications
- Cement Plants, the Metallurgy & Wood Industries, Chemical Industry
- Monitoring of Dust Filter Plants
- Power Stations
- Waste Incineration Plants
Approvals & Certifications
- EN 15267-3
- MCERTS
Approvals & Certifications
- CE
- EAC
- EPA
- TÜV Test Report 936 / 21205307 / A
Communication
- Modbus RTU
- RS-485
Diameter
- 15.75 to 315" (400 to 8,000 mm)
Environmental Protection
- IP65
Measuring Range
- 0 to 200 mg/m³
Output
- 2 x 0-20 mA / 500 ohms
- 2 x 4-20 mA / 500 ohms
Power Supply
- 85-264 Vac, 47 to 63 Hz, 50 VA
Pressure Range
- Flue Gas - psi: -0.72 to 0.29 (kPa: -5 to 1, bar: -0.05 to 0.01)
Process Temperature
- Flue Gas: 0° to 350° C (32° to 662° F)
Relay Output
- Permissible Load: 0.5 A at 48 V
Sensor, Probe Length
- From Flange: 15.7" (400 mm)
- From Flange: 31.5" (800 mm)
