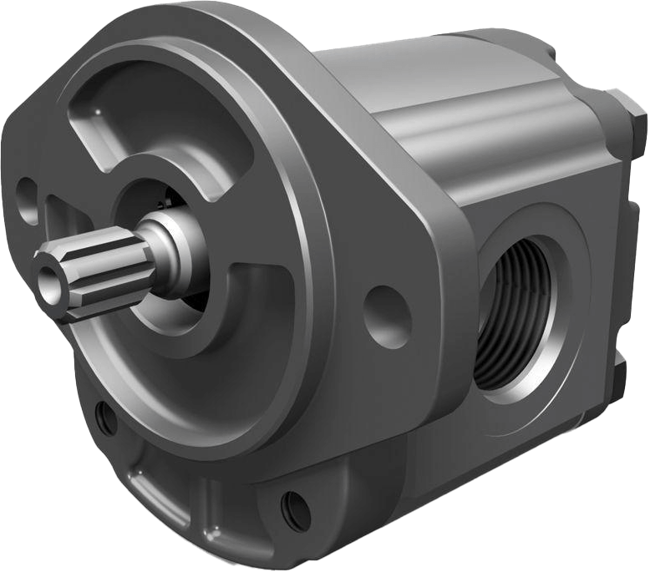

Aluminum Pumps - Series PGP511
Brand: Parker HannifinParker’s Aluminum Pump PGP511 Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction.
Parker’s 511 series fixed displacement gear pumps offer cost effective, high power density due to their aluminum, bushing block construction, making them ideal in a broad selection of markets such as Material Handling, Agriculture, Turf, as well as a variety of Industrial Applications.
They are available as single or multi-section pumps.
Features- Three-piece construction for distribution flexibility
- Aluminum pumping sections for light weight
- Journal bushings for long life
- Pressure balanced thrust blocks for high efficiency
- Multiple sections available
Specifications
Brand
Body Material
- Aluminum
Circuit Type
- Open
Configuration
- Single
Control Method
- Consult Parker
Filtration Ratings
- According to ISO 4406 Cl. 19/17/13
Fluid Type
- Standard Hydraulic Fluid / Phosphate Ester / Water Glycol / Biodegradable
Maximum Fluid Temperature (°C)
- 70° C
Maximum Operating Pressure (bar)
- 250
Maximum Weight (kg)
- 4.5
Minimum Fluid Temperature (°C)
- -40° C
Mounting
- SAE A 2-Bolt / Rectangular / Thrubolt Flange / 4 Bolt Flange
Port Connection Type
- BSP Thread / Square / Diamond
Porting Location
- Side Ports / Rear Ports
Pump Displacement (cc/rev)
- 6 to 33
Pump Technology
- Gear
Pump Type
- Fixed
Rotation
- Clockwise / Counter Clockwise
Shaft Type
- SAE A Splined / Taper Key / DIN ISO 14
Speed Range (rpm)
- 500 to 3500
- Power steering pumps – priority valves available
- Brake pump
- Brush Chipper
- Trencher pump
- Hydraulic Power Unit
- Aerial Lift
- Transfer pump
- Lube pump
