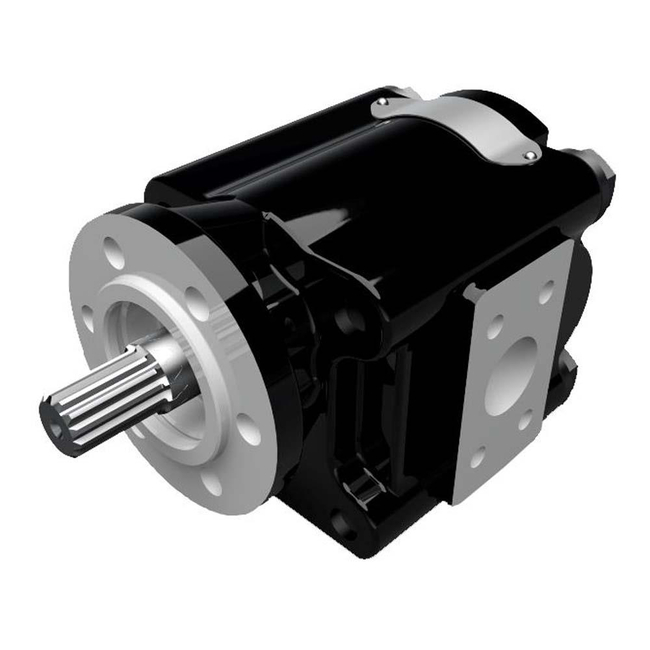

Cast Iron Pumps – PG031 Series

Cast Iron Pumps - PG031 Series

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s 031 series fixed/positive displacement gear pumps offer high durability & resistance to oil contamination due to their cast iron, roller bearing construction, making them an ideal selection for the Vocational Truck, Winch, and Oil & Gas markets.

They are available as single or multi-section pumps with an integral valve.
Features
  • Three-piece cast iron construction for distribution flexibility
  • Cast Iron construction for durability
  • Balanced Thrust Plates minimize friction and leakage
  • Roller bearings for durability
  • Multiple sections available

Specifications

Brand

Body Material

  • Cast Iron

Case Drain Option

  • No

Charge Pump Option

  • No

Circuit Type

  • Open

Configuration

  • Single / Tandem / Multiple

Control Method

  • N/A

Energy Recovery Capable

  • No

Filtration Option

  • No

Fluid Type

  • Standard Hydraulic Fluid / Phosphate Ester

Maximum Displacement (cm3/rev)

  • 65

Maximum Displacement (inch3/rev)

  • 3.9

Maximum Flow (gpm)

  • N/A

Maximum Flow (Lpm)

  • N/A

Maximum Fluid Temperature (°C)

  • 80° C

Maximum Fluid Temperature (°F)

  • 180° F

Maximum Noise Level (dBA)

  • N/A

Maximum Operating Pressure (bar)

  • 207

Maximum Operating Pressure (psi)

  • 3000

Maximum Radial Shaft Load (kg)

  • Consult Parker

Maximum Radial Shaft Load (Lbs)

  • Consult Parker

Maximum Speed (rpm)

  • 3000

Maximum Viscosity (SUS)

  • 7500

Maximum Weight (kg)

  • 17

Maximum Weight (Lbs)

  • 37

Media

  • N/A

Minimum Fluid Temperature (°C)

  • -20° C

Minimum Fluid Temperature (°F)

  • 0° F

Minimum Viscosity (SUS)

  • 50

Mounting Option

  • SAE, ISO , DIN

Port Connection

  • SAE, ISO , NPT, BSPP, ODT

Port Connection Type

  • Flange / Straight Threaded

Porting Location

  • Side Ports / Rear Ports

Pump Technology

  • Gear

Pump Type

  • Fixed

Rotation

  • Clockwise / Counter Clockwise / Bi-Rotational

Sensor Type

  • N/A

Shaft Type

  • SAE, ISO , DIN, Industry Specific

Thru-Drive Capability

  • No

  • Tire Trucks
  • Salt and Sand Spreaders
  • Aerial Lift

Documentation

Product Manuals

Catalogs
