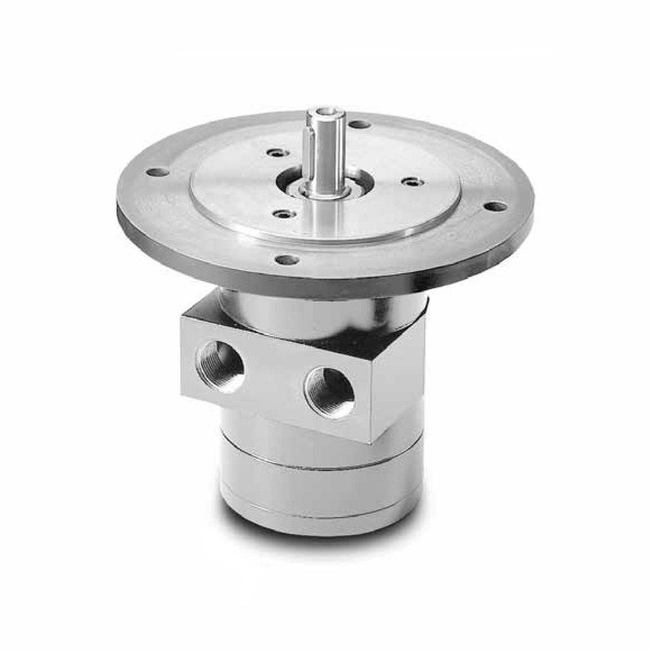

Pneumatic Rotary Vane Air Motors - P1V-A Series / Parker Pneumatic - Europe
Brand: Parker HannifinP1V-A is a range of air motors intended for heavy and demanding applications. The motor housings are made from painted cast iron, and the components sealed to permit operation in damp and dirty environments.
The range contains six different sizes with power ratings of 1600, 3200, 5000, 6000, 9000 and 18000 Watts.
Motors with power ratings from 1600 to 6000 Watts can be supplied with built-in gearboxes, either planetary, helical (spur) or worm drives, to provide the correct speed of rotation and torque. ATEX certified versions for environments with an explosive atmosphere are available for models P1V-A160, P1V-A320, P1V-A500, P1V-A600.
Basic motors: All pneumatic motors are equipped with spring loaded vanes as standard, which gives the motors very good starting and low speed running characteristics.
The simple construction of the motors makes them very reliable, with long service life and they are easy to service.
Motors with planetary gears: A P1V-A combined with a planetary gear has small installation dimensions, low weight in relation to performance, free installation position, flange mounting as standard, in line output shaft and high efficiency.
They are available with shaft speeds ranging from 190 to 600rpm, with torques ranging from 32 to 84Nm.
Motors with helical (spur) gears: A P1V-A combined with a helical gear has high efficiency, simple installation with flange or foot, and competitive pricing. They are available with shaft speeds ranging from 18 to 625rpm, with torques ranging from 24 to 2460Nm.
Oil-bath gears mean that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug.
Motors with worm gears: A P1V-A combined with a worm drive gear has the following characteristics: gearboxes with high gear ratios are self locking, which means that they can be used to maintain the output shaft in position, simple installation with the flange on the left or right sides or with a foot, small installation dimensions and competitive pricing.
They are available with shaft speeds ranging from 37 to 350rpm, with torques ranging from 40 to 980Nm. Oil-bath gears mean that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug.
Holding brakes: Fitted to the front of motors without gearboxes and can be ordered pre-assembled to the motor or as an optional item.
Features- Much smaller installation dimensions than corresponding electric motors
- Can be loaded until they stall, without damage.
- They are designed to be able to withstand the toughest heat, vibration, impact etc.
- Can be stopped and started continually without damage
- Weight is several times less than corresponding electric motors
- Can be used in the harshest environments
- Simple design principle makes them very easy to service
- Reversible as standard
- The design and the low number of moving parts aids reliability
- Explosion proof and ATEX certified
Specifications
Brand
Air Consumption
- N/A
Air Flow (Nl/min)
- N/A
Approvals & Certifications
- IEC/ATEX
Axial Load (N)
- Dependant on Power & Gearbox Version
Corrosion Resistant Option
- Yes
Cushioning Type
- N/A
Function
- Double
Maximum Working Pressure (bar)
- 7 (6” Explosive Atmosphere)
Nominal Torque (Nm)
- 3.4 to 2460 (At 6 bar)
Operating Temperature (°C)
- -10° to +110° C / -20° to +40° C (In Explosive Atmospheres)
Operating Temperature (°F)
- 14° to 230° F / -4° to 104° F (In Explosive Atmosphere)
Port Size
- G1/2, G3, 4, G2
Position Sensing
- N/A
Power Output (Watts)
- 1600 to 18000
Product Type
- Vane Motor
Radial Load (N)
- Dependant on Power & Gearbox Version
Repairable
- Yes
Weight (kg)
- Dependant on Power & Gearbox Version
- Mixers and Agitators
- Power Generation
- Torque Generation
