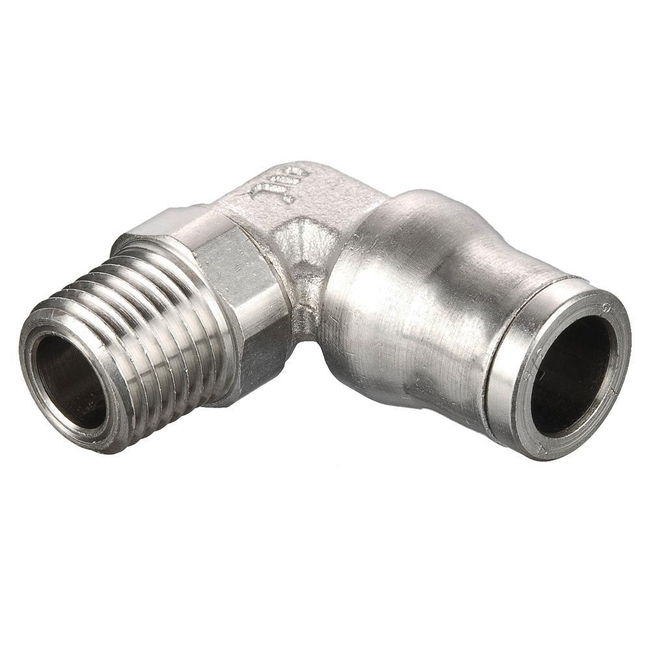

Prestolok PLM Metal Push-to-Connect Fittings
Brand: Parker HannifinBeing the world's leader in push-to-connect fitting technology Parker's Prestolok PLM fittings offers the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Parker's Prestolok PLM metal fittings have a high phosphorous, FDA compliant, electroless nickel plating which is resistant to water, harsh detergents and other aggressive fluids.
Prestolok PLM fittings are fitted with a FKM O-ring protected by a washer and can be used with all liquid and gaseous fluids compatible with these components.
Prestolok PLM metal push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings.
The spring collet gripping system makes the Prestolok PLM fitting suitable for both metal (grooved) and polymer tubing. All components in Prestolok PLM are silicone free.
All Prestolok PLM fittings are 100% leak tested and date coded to guarantee quality and traceability.
Cut down on assembly time with Parker Prestolok PLM quick connect fittings.
Features- High phosphorous, FDA compliant, chemical resistant, electroless nickel plated collet and body
- FKM O-ring
- Chemical, corrosion and abrasion resistance
- Forged shapes
- Collet technology
- Inch & metric 5/32" - 1/2", 4mm - 14mm
- NPT, UNF, BSPT, BSPP, Metric threads
- Use with Polyethylene, Polyurethane 95 Durometer Shore A, FEP, Nylon, Semi-rigid Nylon, Grooved Stainless Steel & Copper
- Silicone free
- Compact and ergonomic
Specifications
Brand
Applications
- Food Process, Medical, Printing, Welding, Misting
Collet Material
- Nickel-Plated Brass
Connection 1 Style
- Plug-In Stem, Push-to-Connect
Connection 1 Tube O.D. (inch)
- 1/4”, 5/32”, 3/8”, 1/2”, 5/16”
Connection 1 Tube O.D. (mm)
- 10, 12, 14, 4, 6, 8
Connection 2 Style
- Barb, Push-to-Connect, BSPP Male, MaleBSPT, BSPT, Male Pipe, Metric, UNF, Plug-In Stem, BSPP Female
Connection 2 Thread Size (inch)
- 1/8”, 1/4”, 3/8”, 10/32, 1/2”
Connection 2 Thread Size (mm)
- 1/4, 3/8, 1/2, 1/8, M5 x 0.8, M6 x 1, M8 x 1, M10 x 1, 10
Connection 2 Tube O.D. (inch)
- 1/4”, 5/32”, 3/8”, 1/2”, 5/16”
Connection 2 Tube O.D. (mm)
- 6, 8, 10, 12, 14, 3, 5, 4
Connection Type
- Push-to-Connect, Plug-In Stem, Barb & Thread
Industry Standards
- FDA, ISO 14743, FDA
Material
- Nickel-Plated Brass
Maximum Working Pressure (bar)
- 20
Maximum Working Pressure (psi)
- 290
Maximum Working Temperature (°C)
- 121° C
Maximum Working Temperature (°F)
- 250° F
Minimum Working Temperature (°C)
- -20° C
Minimum Working Temperature (°F)
- -4° F
Seal Material
- FKM
Shape
- Various
Silicone Free
- Yes
Style
- Tube to Barb, Tube to Tube, Tube to Pipe, Tube to Plug, Tube to Female Pipe
Thread Type
- NPT, UNF
Tubing Material
- Polyethylene, Polyurethane 90-95 Durometer, Nylon, Fluoropolymer
Vacuum Rating (inches of Hg)
- 29
- Harsh detergents
- Wash down
- Hot/Cold water cleaning
- Steam
- Oils
- Welding robots
- Medical equipment
