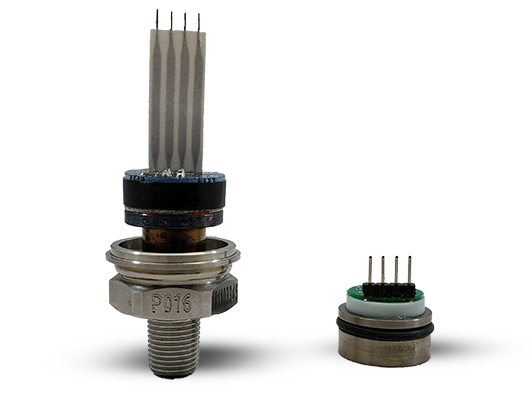

CS11 Compact Media Isolated Pressure Sensor

Brand: Core Sensors

The CS11 is a compact media isolated pressure sensor where the silicone sensing element is isolated by a fluid filled cavity. Sensors are available with a millivolt output signal and 316L SS wetted material for compatibility in a variety of medias. With available pressure ranges from 0-2 up to 2,000 PSI, the CS11 is an economical choice in applications with minimal installation space.
Features
  • ≤ ±0.25% BFSL accuracy
  • Compact design
  • Pressures from 2 PSI up to 2,000 PSI
  • Flush diaphragm available

1 - 12 of 108 Part Numbers
CS11-1ABA9T000
CS11-1ABA9T000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Bar
  • Pressure Reference - Absolute
  • Output - 10 mV/V
  • Electrical - 2” Flex Strip
CS11-1ABA9U000
CS11-1ABA9U000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Bar
  • Pressure Reference - Absolute
  • Output - 10 mV/V
  • Electrical - 4-Pin Molex
CS11-1ABG9T000
CS11-1ABG9T000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Bar
  • Pressure Reference - Gauge
  • Output - 10 mV/V
  • Electrical - 2” Flex Strip
CS11-1ABG9U000
CS11-1ABG9U000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Bar
  • Pressure Reference - Gauge
  • Output - 10 mV/V
  • Electrical - 4-Pin Molex
CS11-1ABV9T000
CS11-1ABV9T000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Bar
  • Pressure Reference - Vacuum (Gauge)
  • Output - 10 mV/V
  • Electrical - 2” Flex Strip
CS11-1ABV9U000
CS11-1ABV9U000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Bar
  • Pressure Reference - Vacuum (Gauge)
  • Output - 10 mV/V
  • Electrical - 4-Pin Molex
CS11-1AMA9T000
CS11-1AMA9T000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Milibar
  • Pressure Reference - Absolute
  • Output - 10 mV/V
  • Electrical - 2” Flex Strip
CS11-1AMA9U000
CS11-1AMA9U000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Milibar
  • Pressure Reference - Absolute
  • Output - 10 mV/V
  • Electrical - 4-Pin Molex
CS11-1AMG9T000
CS11-1AMG9T000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Milibar
  • Pressure Reference - Gauge
  • Output - 10 mV/V
  • Electrical - 2” Flex Strip
CS11-1AMG9U000
CS11-1AMG9U000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Milibar
  • Pressure Reference - Gauge
  • Output - 10 mV/V
  • Electrical - 4-Pin Molex
CS11-1AMV9T000
CS11-1AMV9T000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Milibar
  • Pressure Reference - Vacuum (Gauge)
  • Output - 10 mV/V
  • Electrical - 2” Flex Strip
CS11-1AMV9U000
CS11-1AMV9U000
  • Process Connection - 1/2” Male NPT
  • Wetted Material - 316L Stainless Steel
  • Pressure Range - Custom Pressure Range
  • Pressure Unit - Milibar
  • Pressure Reference - Vacuum (Gauge)
  • Output - 10 mV/V
  • Electrical - 4-Pin Molex
1 - 12 of 108 Part Numbers

Specifications

Brand

Accuracy

  • ≤ ± 0.25 % BFSL
  • ≤ ± 0.5 % BFSL (2 psi)

Stability (1 Year)

  • ≤ ± 0.25 % of Full Scale

Pressure Cycles

  • 10 million

Overpressure

  • 2x Min.

Operating Temperature

  • -40° to +120° C

Compensated Temperature

  • 0° to +70° C

Storage Temperature

  • -40° to +125° C

Vibration

  • 10 g, 20 to 2000 Hz

Shock

  • 100 g, 11 msec, 1/2 Sine

Excitation

  • 5 Vdc, Typical
  • 10 Vdc, Max.

  • Pressure control panels
  • Low pressure monitoring
  • General industrial equipment
  • pressure measurement in confined areas
