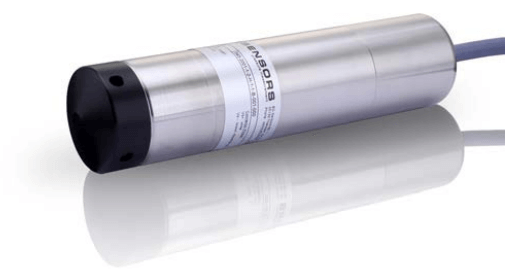

LMK 382H Level Probe
Brand: BD SensorsThe stainless steel probe LMK 382H has been designed for continuous level measurement in waste water, waste and higher viscosity mediums.
Basic element is a robust and high overpressure capable capacitive ceramic sensor example for low levels.
Features- HART®-communication (setting of offset, span and damping)
- Permissible temperatures up to 85 °C
- High overpressure capability
- High long term stability
Specifications
Brand
Approvals & Certifications
- ATEX: IBExU 10 1186X, II 1 G Ex ia IIB T4 for Zone 0, II 1D Ex iaD 20 T85° C for Zone 20
- CE
- EMC: Emission & Immunity According to EN 61326
- IEC 60770
- REACH
- RoHS
- TÜV NORD
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- IP68
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - PN 40
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 40
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 40
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 16
Output
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0.05 to 19.61
- kPa: 5.88 to 1,961
- meters WC 0.6 to 200
- psi: 0.85 to 284.5
- Chemical Industry
- Energy Industry
- Environmental Industry
