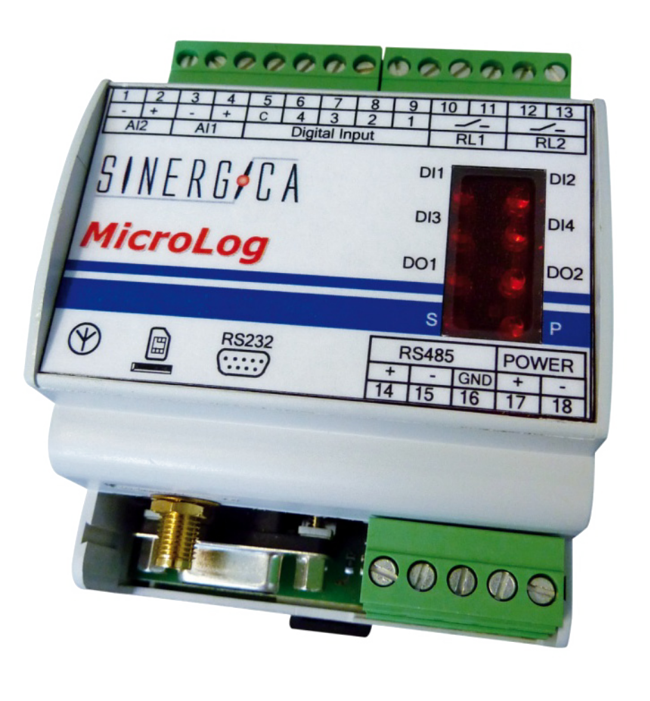

MicroLog GSM & GPRS Remote Control System

Brand: BM Technologies

MicroLog is a GSM modem that allows the remote control of any electronic system, it is installed nearby the electronic device you should control, connected to it via a serial port RS485/232 or via Analog or digital input and output.

MicroLog also allows to interact with the remote system by receiving and sending SMS, through which you can activate the relay and monitor the state of inputs.

Specifications

Applications

  • Flow Measurement
  • Level Measurement
  • Pumps Control

Communication

  • GSM
  • RS-232 (DB9 Female)
  • RS-485 Modbus (Clamp)

Consumption

  • 120 mA
  • 24 V
  • 60 mA

Electrical Connectors

  • SMA Antenna Connector

Environmental Protection

  • Plastic IP41 Case for DIN

Humidity

  • Relative Humidity: 0 to 80 % Non-Condensing

Indication

  • I/O LED

Input

  • Analog Input: 0-10 V
  • Analog Input: 0-5 V
  • Analog Input: 4-20 mA
  • Analog Input: PTC/NTC

Operating Temperature

  • -25° to 40° C (-13° to 104° F)

Power

  • 12-24 Vac
  • 9-32 Vdc

Relay Output

  • 1 A at 24 Vdc
